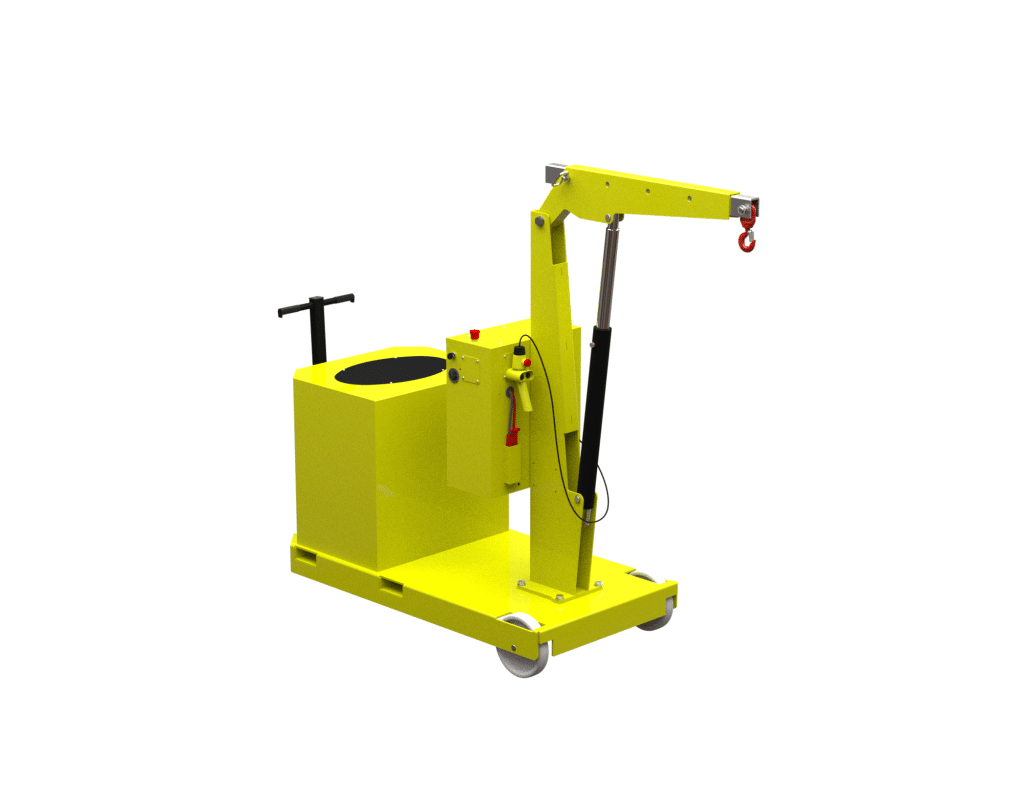

GZ1000B
This counterbalanced crane presents an impeccable fusion of innovation and practicality, featuring a powered lift/lower jib arm alongside a host of advanced features. With a manual push/pull mechanism, the equipment offers precise load manipulation. Driven by battery-powered electro hydraulic lift/lower capabilities, it ensures seamless and controlled lifting actions. Operating through a button pendant control with an emergency stop function, it prioritizes safety without compromising efficiency.
The equipment's fixed jib arm, combined with its substantial maximum safe working load (SWL) of 1000kg, establishes it as a reliable choice for heavy-duty lifting tasks.
Bearing the CE mark and accompanied by a comprehensive safe working load (SWL) test certificate, it underscores its unwavering commitment to safety and compliance. With full adherence to EN standards, this equipment confidently positions itself as a dependable and adaptable tool, poised to excel across a range of industries, delivering efficiency and precision in every application.
- Traction – Manual
- Max Capacity (Kg) – 1000
- Column – fixed
- Max Overhang (mm) – 2000
- Max Height (mm) – 3030
- Frontal footprint (mm) – 800
- Lifting – Electric with single speed
- Lowering – Electric with single speed
- Boom – Manual 4 positions
| Max. lifting capacity | 1000kg |
|---|---|
| Max. lifting height | 2587 |
| Width | 800 |
| Length | 1860 |
