• Powered lift/lower jib arm
  • Manual push/pull
  • Lift/Lower powered by 12v 110 Ah, powering electro hydraulic

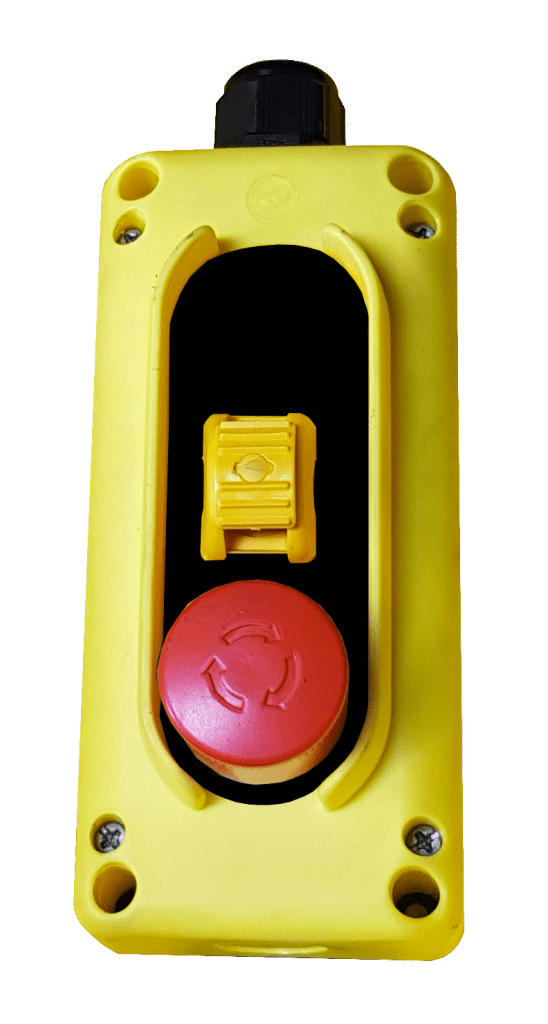

  • Lift/lower controlled by pendant progressive lever with emergency stop
  • Unique 270 degree free rotating Jib arm with 5 locking positions
  • Max SWL 500kg
  • Jib extension manual
  • Maximum standard extension 860mm
  • Maximum with optional extended jib arm 1360mm
  • Max lift height 2804mm
  • O/A dimensions with jib arm down L1342 x W955 x H1780mm
  • Machine weight 640kg
  • Fixed front wheels
  • Rear rotating castors with brake
  • CE marked (Complete with SWL test certificate)
  • EN standards compliant

Enquire About This Equipment

This field is for validation purposes and should be left unchanged.

Featuring a powered lift/lower jib arm, it delivers effortless load positioning. This counterbalanced crane is complemented by a manual push/pull mechanism that ensures meticulous maneuvering. Powered by a 12v 110 Ah battery, the electro-hydraulic system drives the lift/lower actions, guaranteeing precision and control. Overseeing the process is a pendant progressive lever, equipped with an emergency stop for enhanced safety measures.

A distinctive attribute of the equipment is its unique 270-degree free-rotating jib arm, featuring five locking positions that allow for dynamic movements. Impressively, the equipment is engineered to handle a maximum safe working load (SWL) of 500kg, attesting to its robust capacity. The manual jib extension feature adds an extra layer of adaptability, offering a standard extension of 860mm and an optional extended jib arm that reaches an impressive 1360mm. With a maximum lift height of 2804mm, the equipment effortlessly accesses elevated areas with precision and ease.

With the jib arm lowered, the equipment’s overall dimensions measure L1342 x W955 x H1780mm. The machine’s weight of 640kg ensures steadfast stability during operation. The inclusion of fixed front wheels enhances control, while rear rotating castors equipped with a reliable brake system provide exacting movement even in challenging environments. The equipment proudly bears the CE mark, accompanied by a comprehensive safe working load (SWL) test certificate, underscoring its unswerving commitment to safety standards. By fully adhering to EN standards, it confidently positions itself as a dependable and versatile tool, primed to excel across a diverse spectrum of industries.

The lifter Lift Safe supplied is excellent, both operators of the laying machine have said its works perfectly and saves a lot of heavy lifting sometimes with 2 people, as you will see from the photos the roll needs to be lifted to almost head height so previously it was a struggle, however with your lifter the job is much easier and safer now.

Mike Greer. Manager. AMR Textiles
