• Powered lift/lower jib arm
  • Manual push/pull
  • Lift/Lower powered by 12v 110 Ah, powering electro hydraulic
  • Lift/lower controlled by pendant push button with emergency stop
  • Unique 270 degree free rotating Jib arm with 5 locking positions
  • Max SWL 500kg
  • Jib extension manual
  • Maximum standard extension 860mm
  • Maximum with optional extended jib arm 1360mm
  • Max lift height 2804mm
  • O/A dimensions with jib arm down L1342 x W955 x H1780mm
  • Machine weight 640kg
  • Fixed front wheels
  • Rear rotating castors with brake
  • CE marked (Complete with SWL test certificate)
  • EN standards compliant

Enquire About This Equipment

This field is for validation purposes and should be left unchanged.

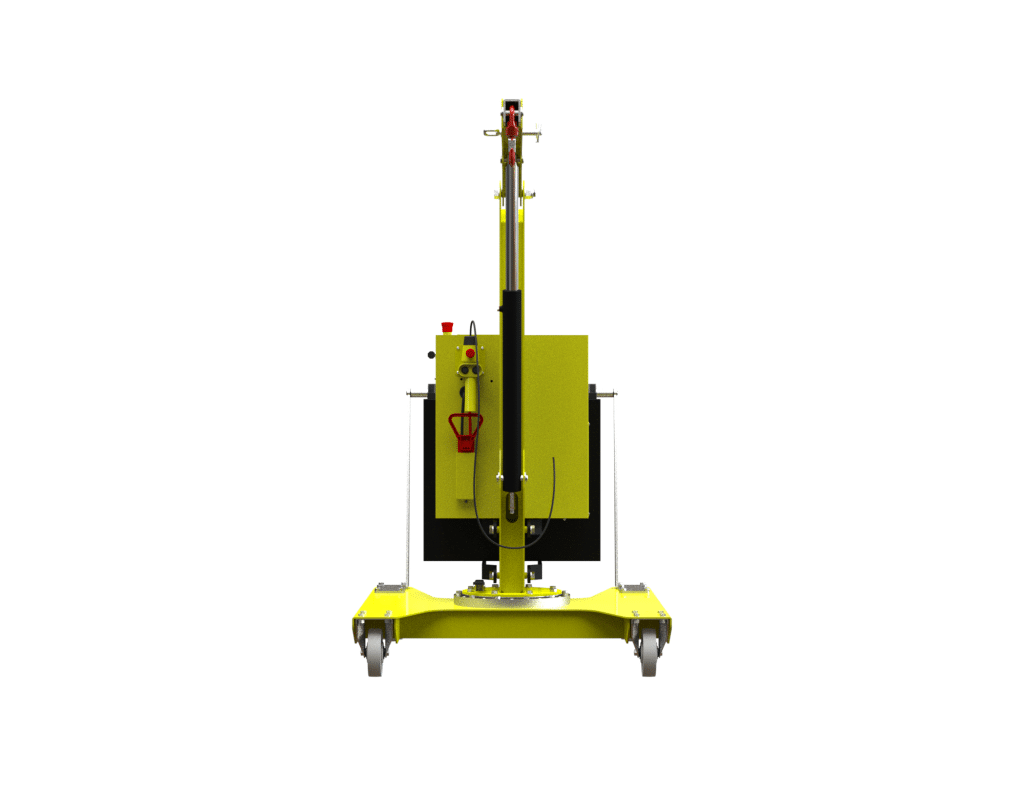

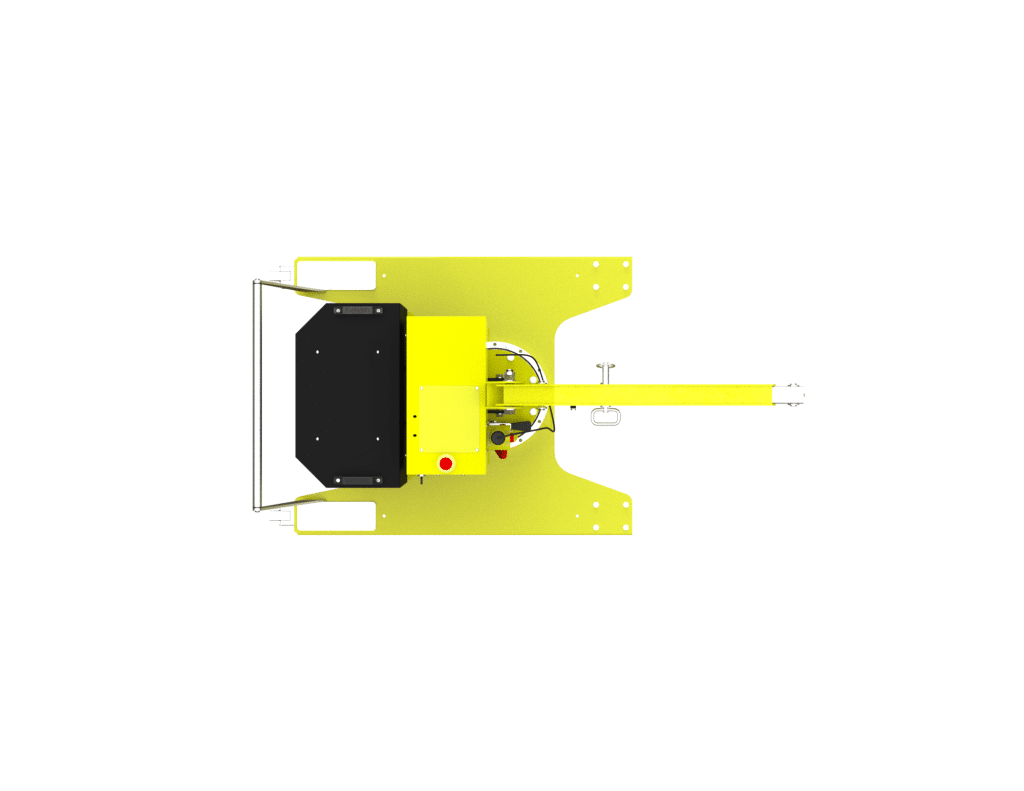

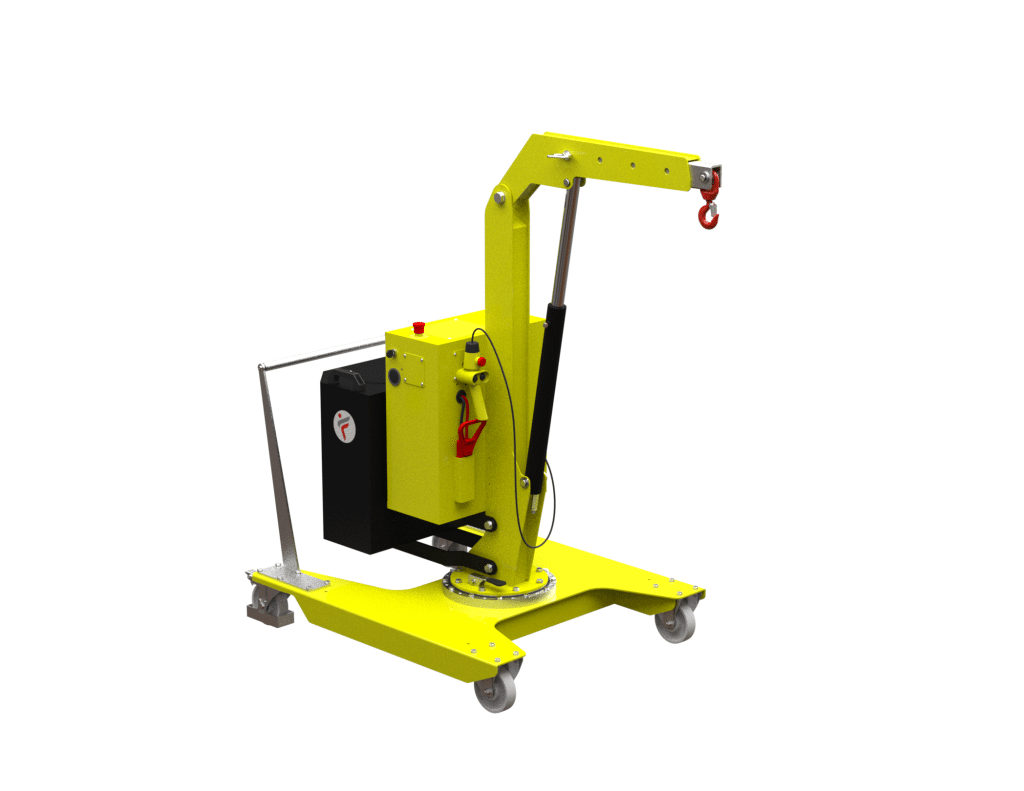

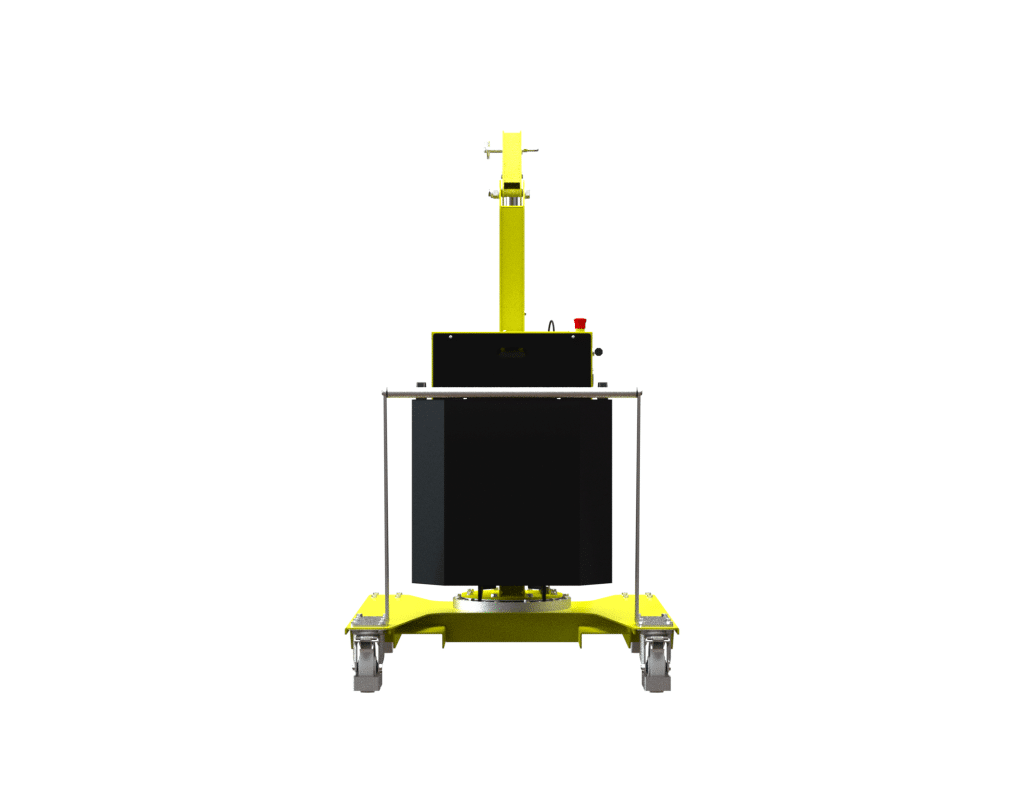

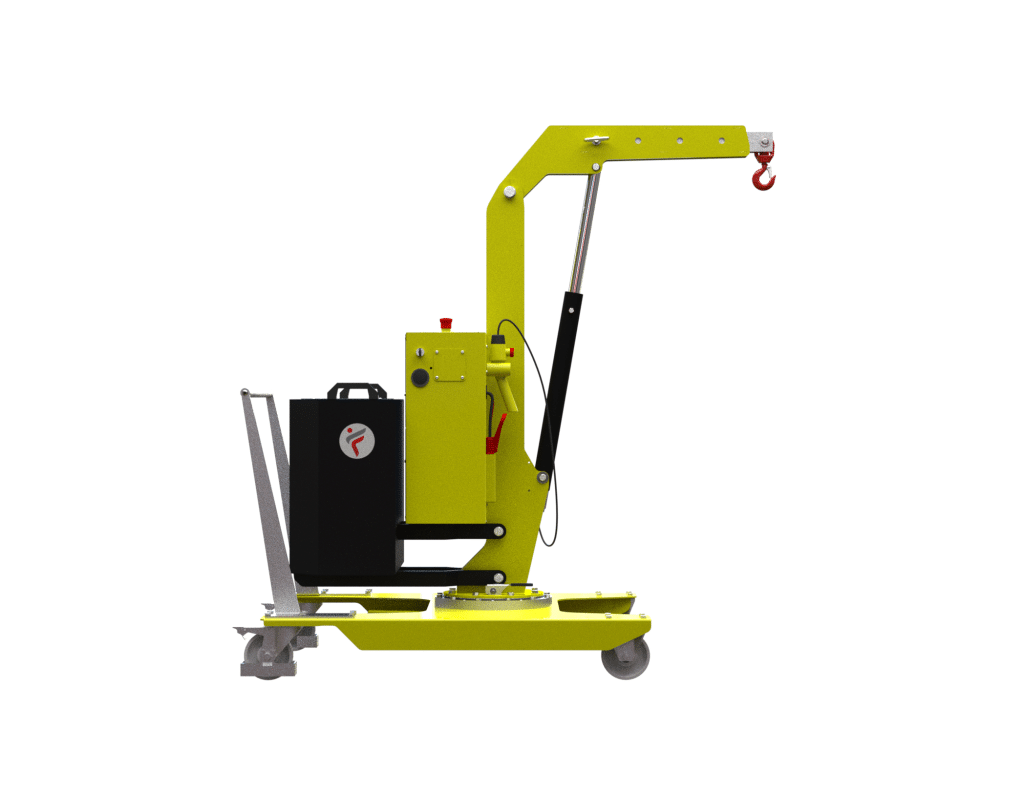

This counterbalanced crane offers a harmonious blend of efficiency and adaptability tailored to intricate lifting operations. Featuring a powered lift/lower jib arm, it affords effortless load positioning. This functionality is coupled with a manual push/pull mechanism for seamless maneuvering. Powered by a 12v 110 Ah battery, the electro-hydraulic system drives the lift/lower actions, ensuring precision and control. The process is conveniently overseen by a pendant push button, which includes an emergency stop function, elevating safety to a paramount level.

A defining feature of the equipment is its unique 270-degree free-rotating jib arm with five locking positions, facilitating dynamic and versatile movements. Impressively, the equipment is capable of safely handling a maximum load of 500kg. The manual jib extension adds further adaptability, offering a standard extension of 860mm and an optional extended jib arm that reaches up to 1360mm. With a maximum lift height of 2804mm, the equipment effortlessly accesses elevated areas with precision.

With the jib arm lowered, the equipment’s overall dimensions are L1342 x W955 x H1780mm, and its sturdy machine weight of 640kg ensures stability during operation. The addition of fixed front wheels enhances control, while rear rotating castors equipped with a dependable brake system provide precision movement even in challenging environments. The equipment bears the prestigious CE mark and is accompanied by a comprehensive SWL test certificate, underscoring its unwavering commitment to safety. Complying fully with EN standards, it confidently stands as a reliable and versatile tool, poised to excel across a diverse range of industries.
