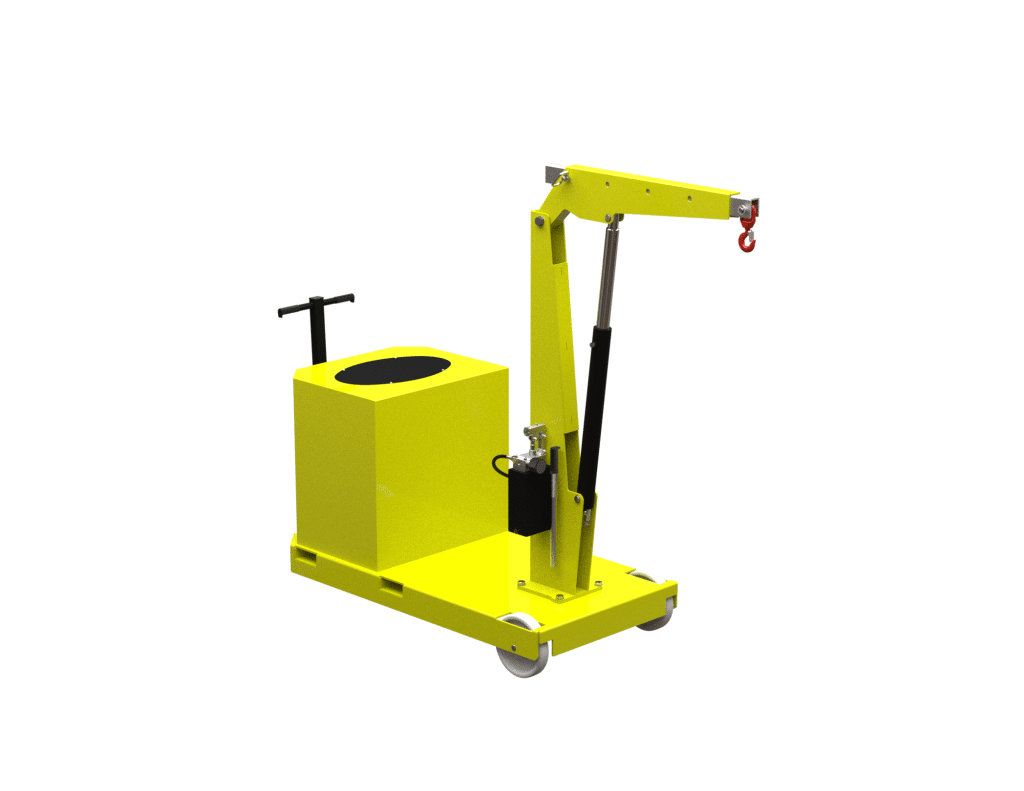

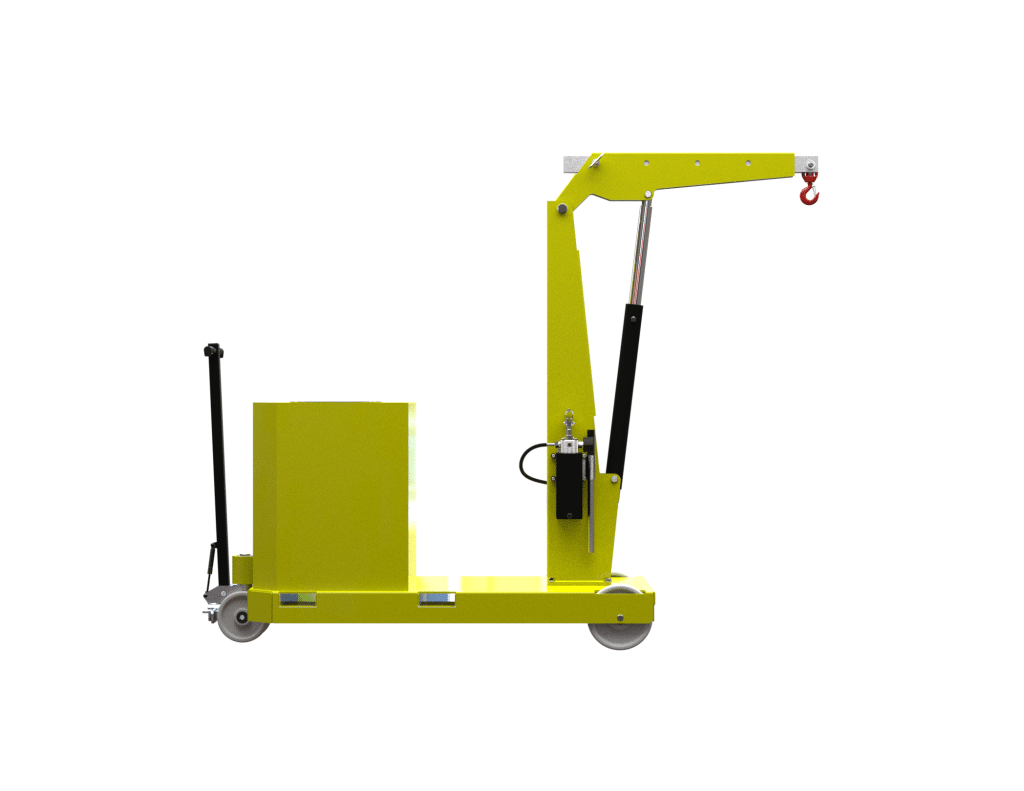

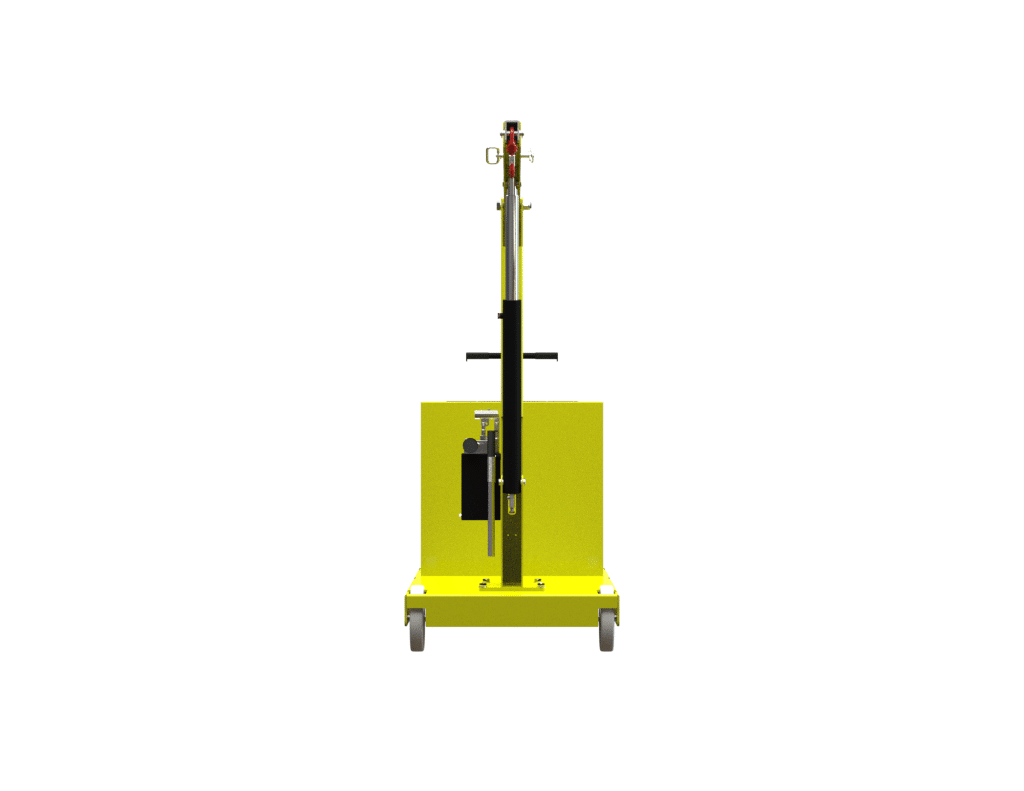

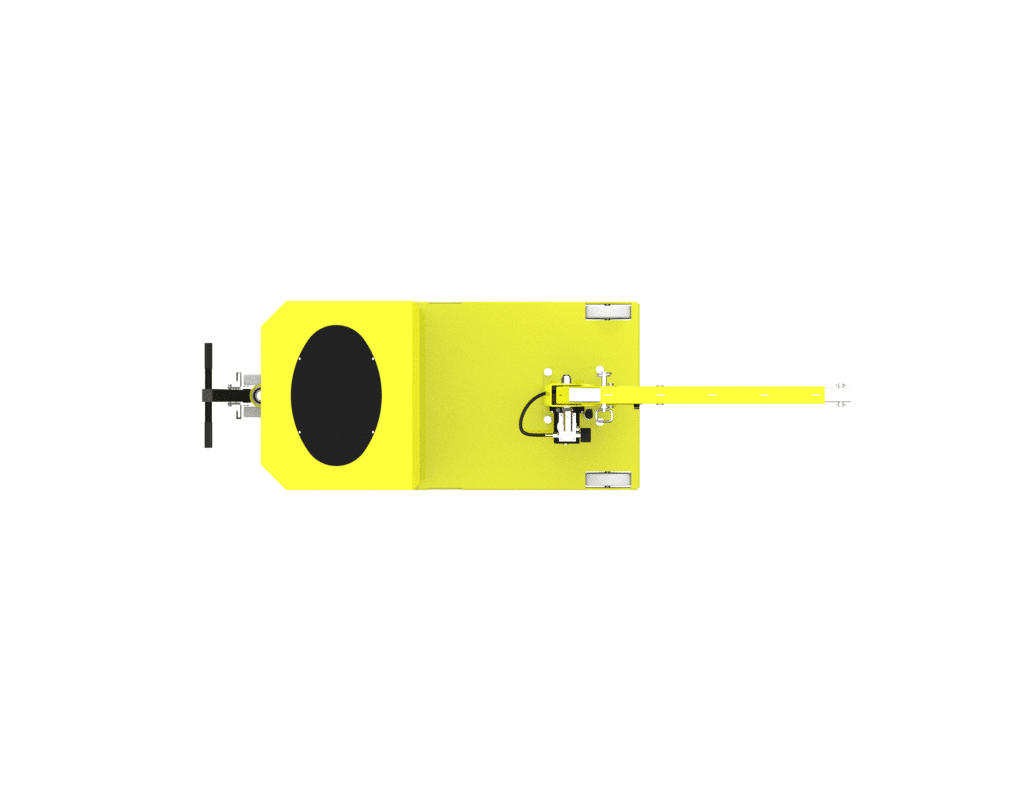

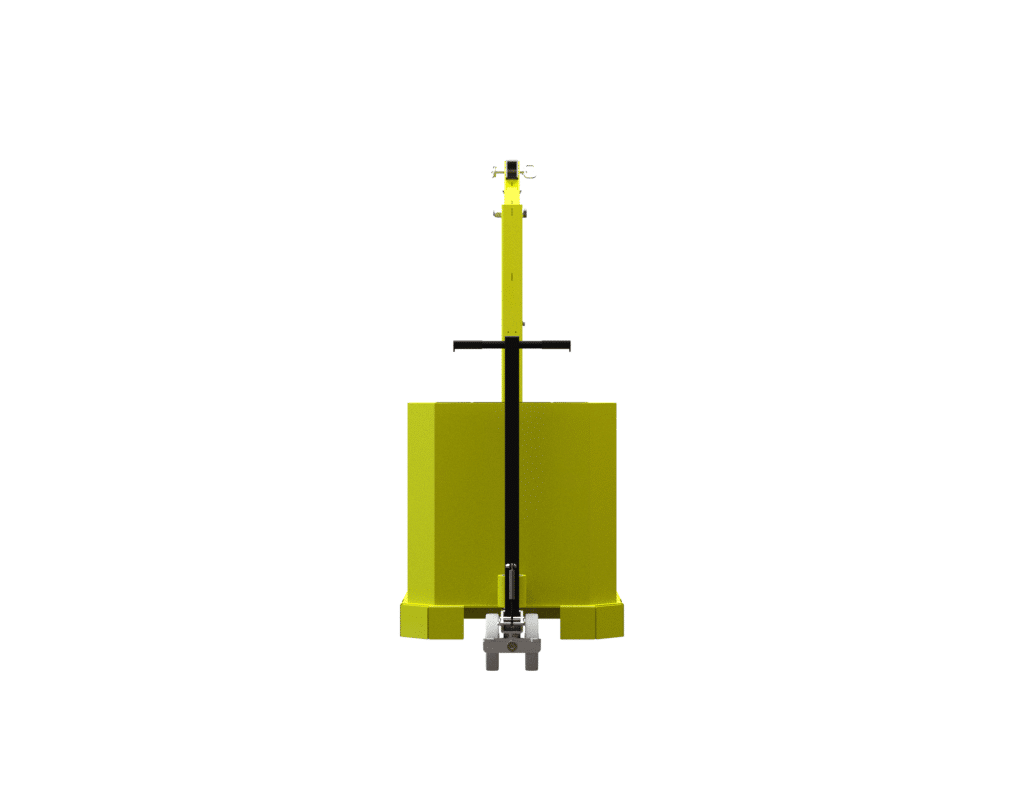

Manual hydraulic lift/lower jib arm

  • Manual push/pull
  • Hydraulic lever controlled fast lift double action pump
  • Fine control descent knob
  • Fixed jib arm
  • Max SWL 1000kg
  • Jib extension manual
  • Maximum standard extension 1250mm

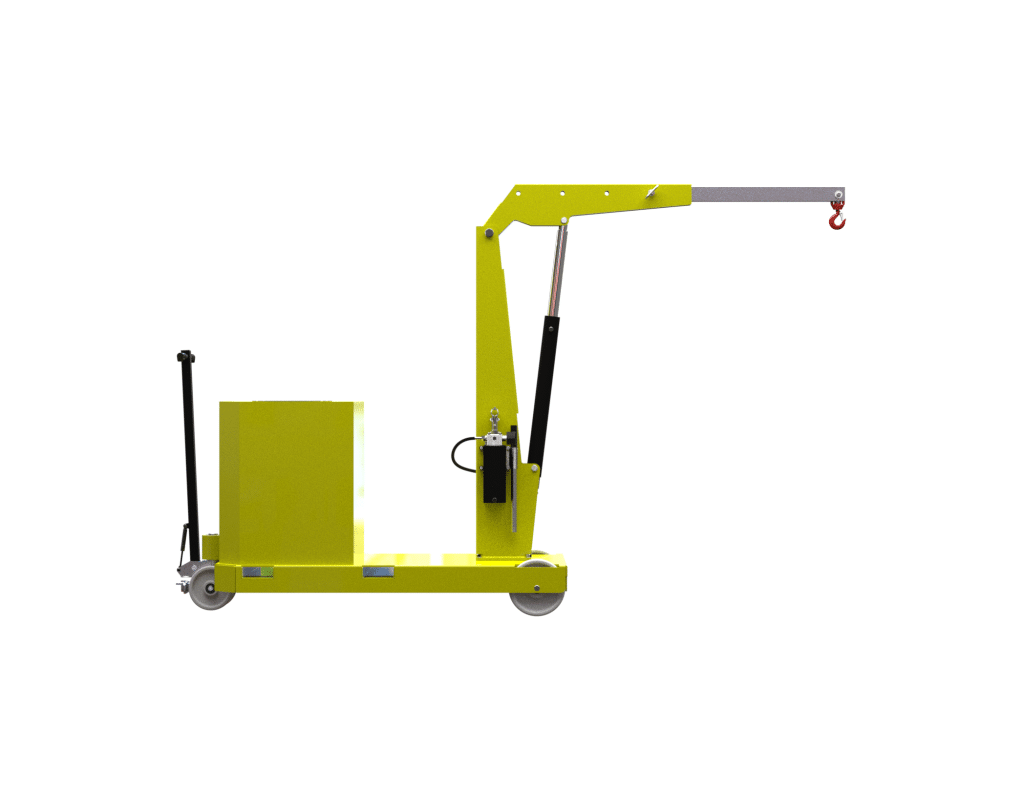

  • Maximum with optional extended jib arm 2000mm
  • Max lift height 3119mm
  • O/A dimensions with jib arm down L2100 x W955 x H1780mm
  • Machine weight 1150kg
  • Fixed front wheels
  • Pallet truck style tiller arm
  • CE marked (Complete with SWL test certificate)
  • EN standards compliant

Enquire About This Equipment

This field is for validation purposes and should be left unchanged.

The lifter Lift Safe supplied is excellent, both operators of the laying machine have said its works perfectly and saves a lot of heavy lifting sometimes with 2 people, as you will see from the photos the roll needs to be lifted to almost head height so previously it was a struggle, however with your lifter the job is much easier and safer now.

Mike Greer. Manager. AMR Textiles
