The equipment embodies a pinnacle of efficiency and adaptability for lifting operations, boasting an impressive array of features. With its powered lift/lower and powered extend/retract jib arm capabilities, load positioning and reach extension become effortlessly controlled. Driven by a 12v 110 Ah battery, the hydraulic counterbalanced crane ensures seamless lift/lower and extension/retraction actions, facilitated by a 4-way fine control lever for precise handling.

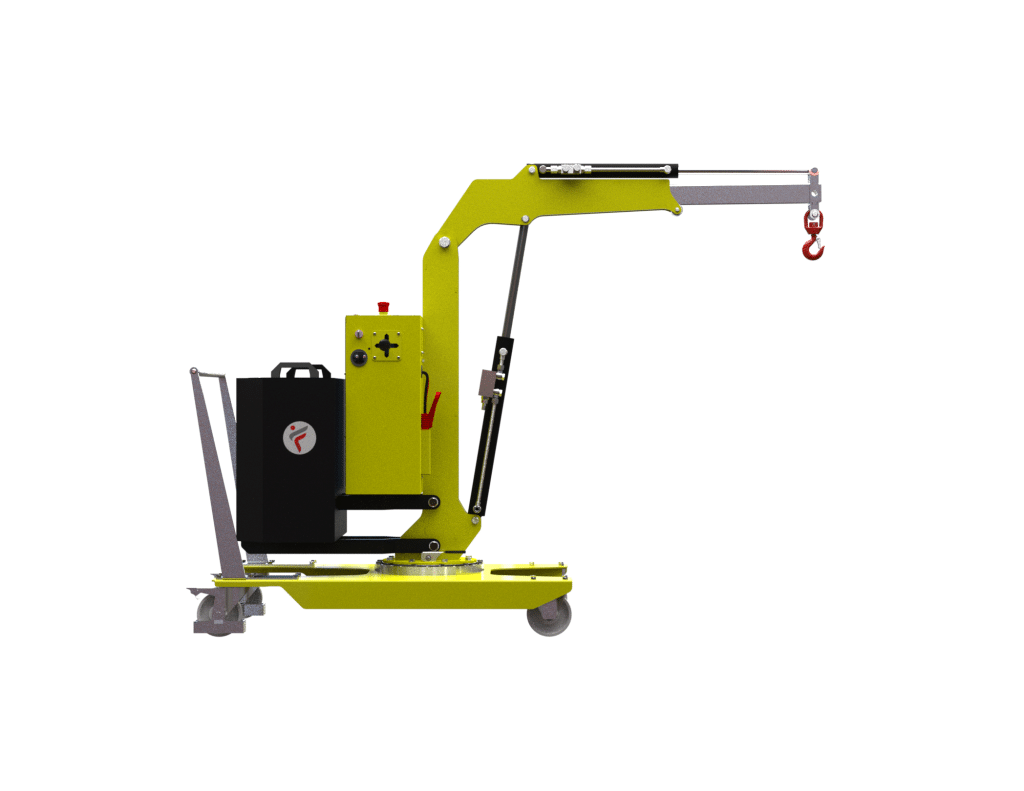

A manual push/pull mechanism adds further convenience, while the 360-degree rotating jib arm with 8 locking positions offers unparalleled maneuverability. With a maximum safe working load (SWL) of 200kg, it caters to a wide range of lifting needs. The manual jib extension capability enhances versatility, with a standard extension spanning 1410mm and an optional extended jib arm that reaches an impressive 1910mm. Achieving a maximum lift height of 2258mm, the equipment facilitates access to elevated areas with ease.

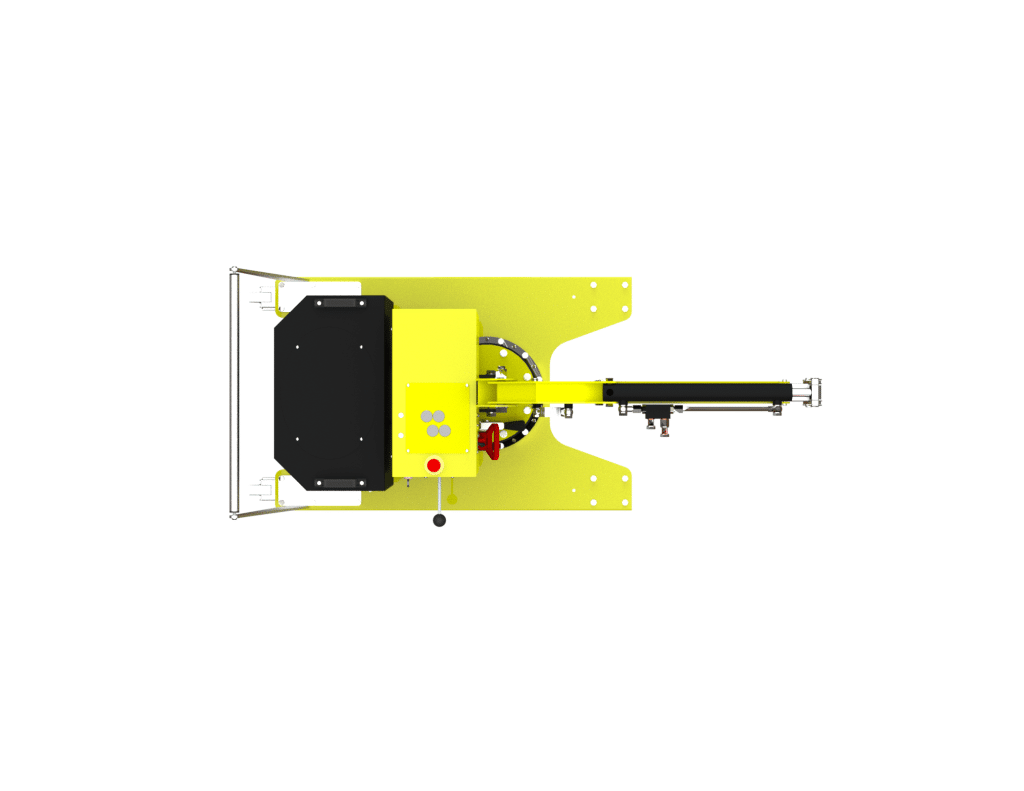

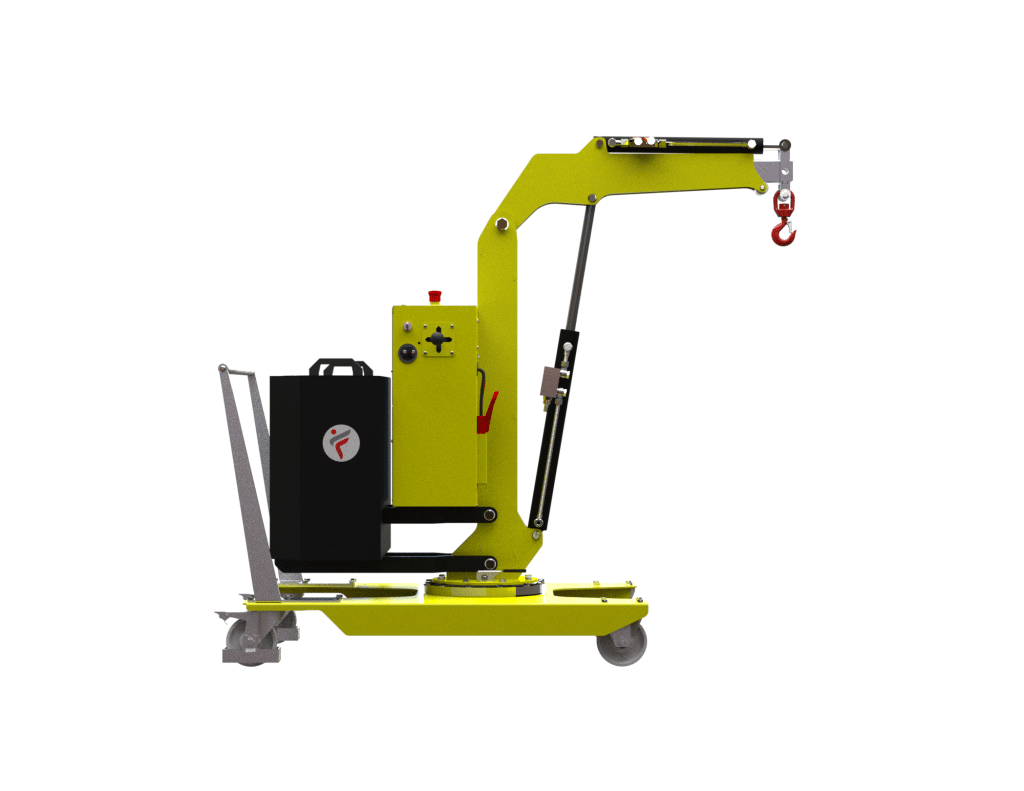

Measuring L1310 x W790 x H1932mm with the jib arm lowered, the equipment boasts a substantial machine weight of 480kg. Fixed front wheels contribute to stability, while rear rotating castors equipped with a brake system ensure controlled movement during operation. Bearing the CE mark and accompanied by an SWL test certificate, the equipment adheres to stringent safety standards. Its unwavering compliance with EN standards solidifies its reputation as a dependable and versatile tool, making it an indispensable asset across a multitude of industries.
