Orbit 200 ER

Orbit 200 ER
Orbit 200 ER - Image 2
Orbit 200 ER - Image 3
Orbit 200 ER - Image 4
Orbit 200 ER - Image 5
Orbit 200 ER - Image 6
Orbit 200 ER - Image 7
Orbit 200 ER - Image 8
Orbit 200 ER - Image 9
Orbit 200 ER - Image 10
Orbit 200 ER - Image 11

Specification:

  • Traction – Electric. Slow/fast speed: 2-speed driving
  • Max Capacity (Kg) – 200
  • Column – Swivel 210°
  • Max Overhang (mm) – 2050
  • Max Height (mm) – 3500
  • Frontal footprint (mm) – 800
  • Lifting – Electric with adjustable and proportional speed
  • Lowering – Electric with adjustable and proportional speed
  • Boom – Double electric boom with adjustable speed
Download Brochure

Enquire About This Equipment

This field is for validation purposes and should be left unchanged.

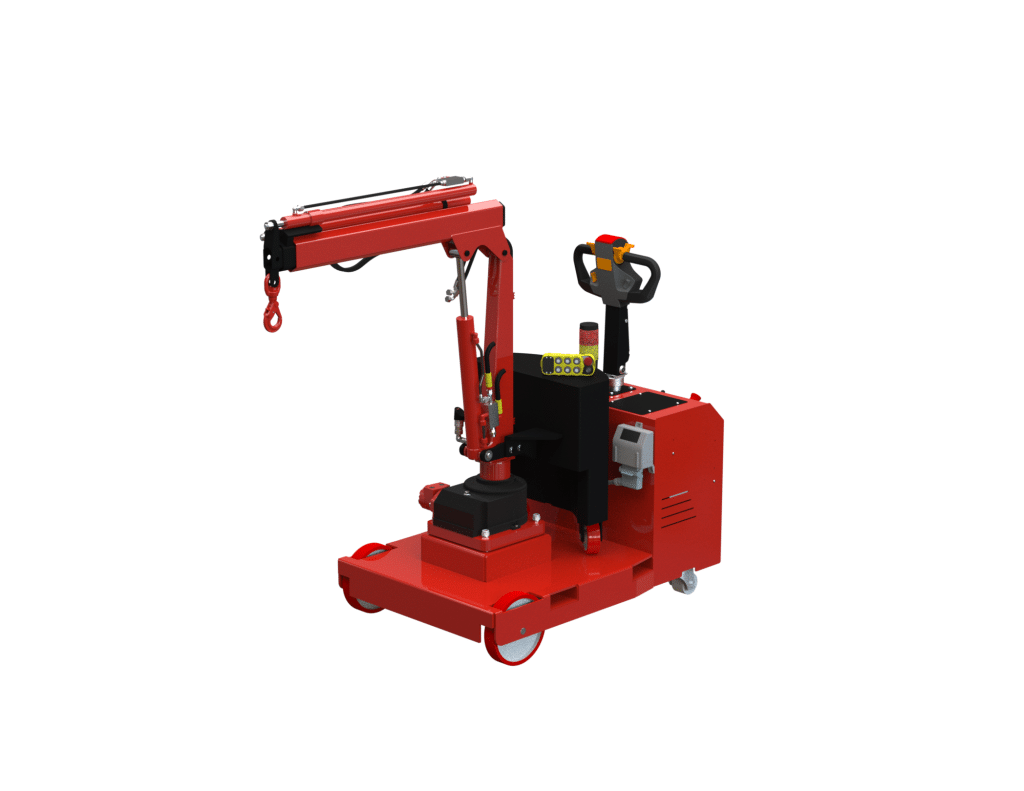

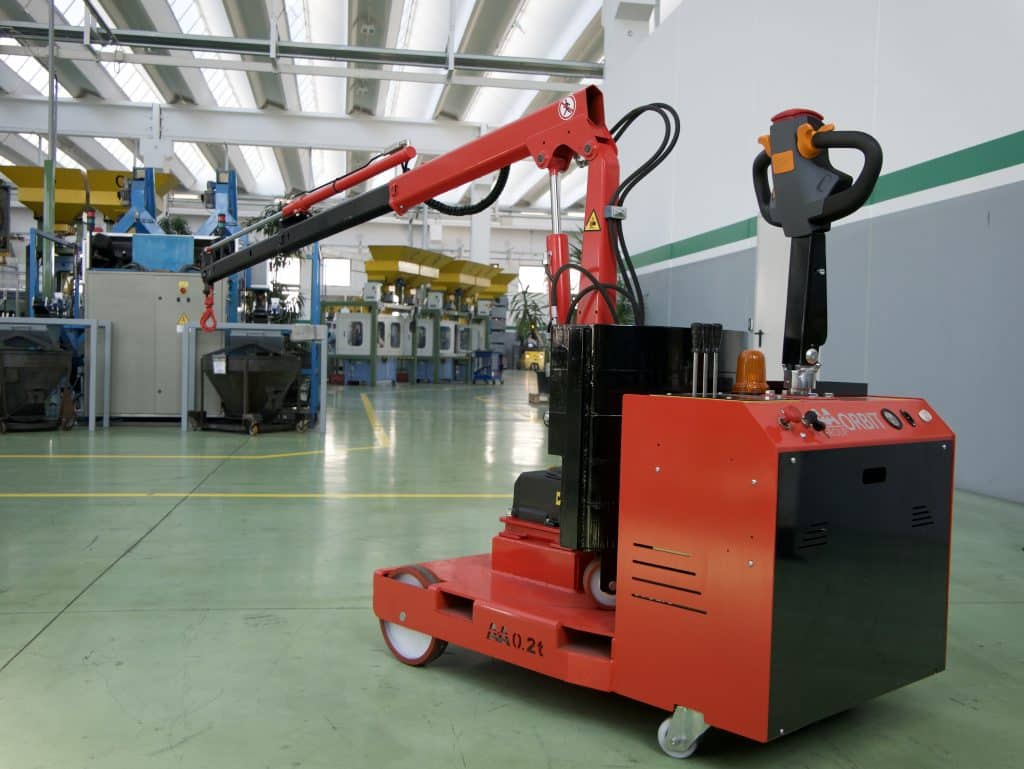

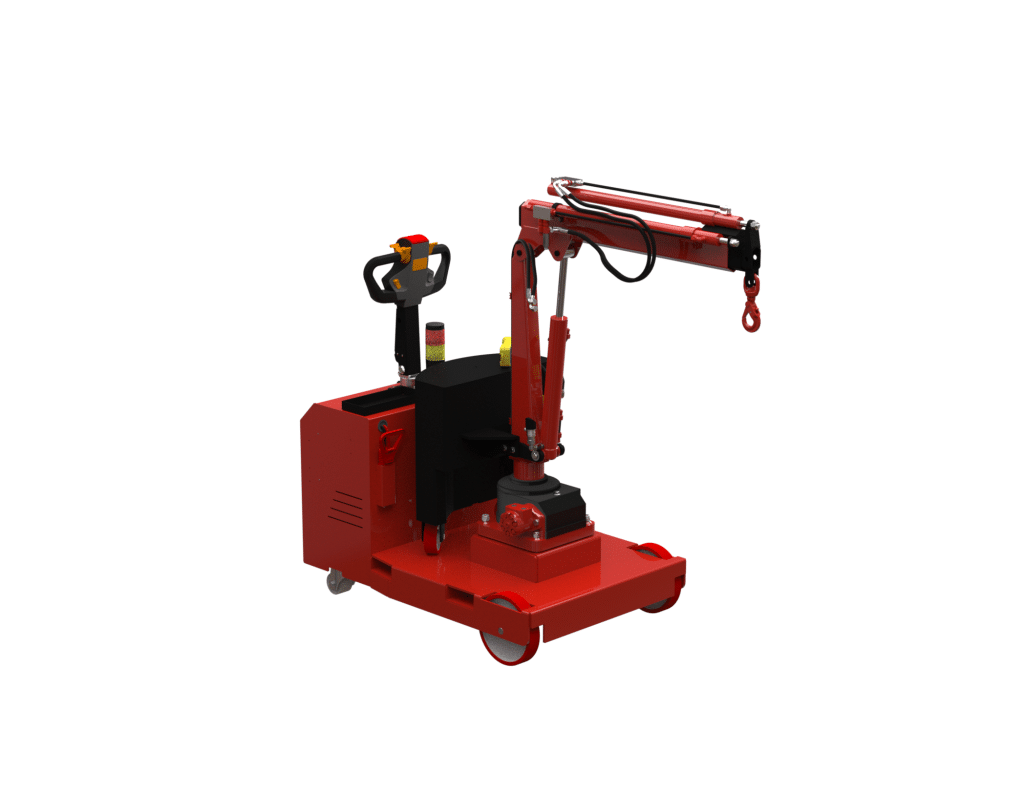

The pick and carry crane ORBIT 200ER  is a full electric swivel crane with a capacity of 200 Kg and is equipped with wireless remote control.

ORBIT 200ER is equipped with remote control with proportional and adjustable speed . The remote control handle is equipped with a button , that allows you to activate the proportional control mode.

  1. controls the jib upward/downward motion
  2. controls the jib extension & retraction
  3. controls the column rotation

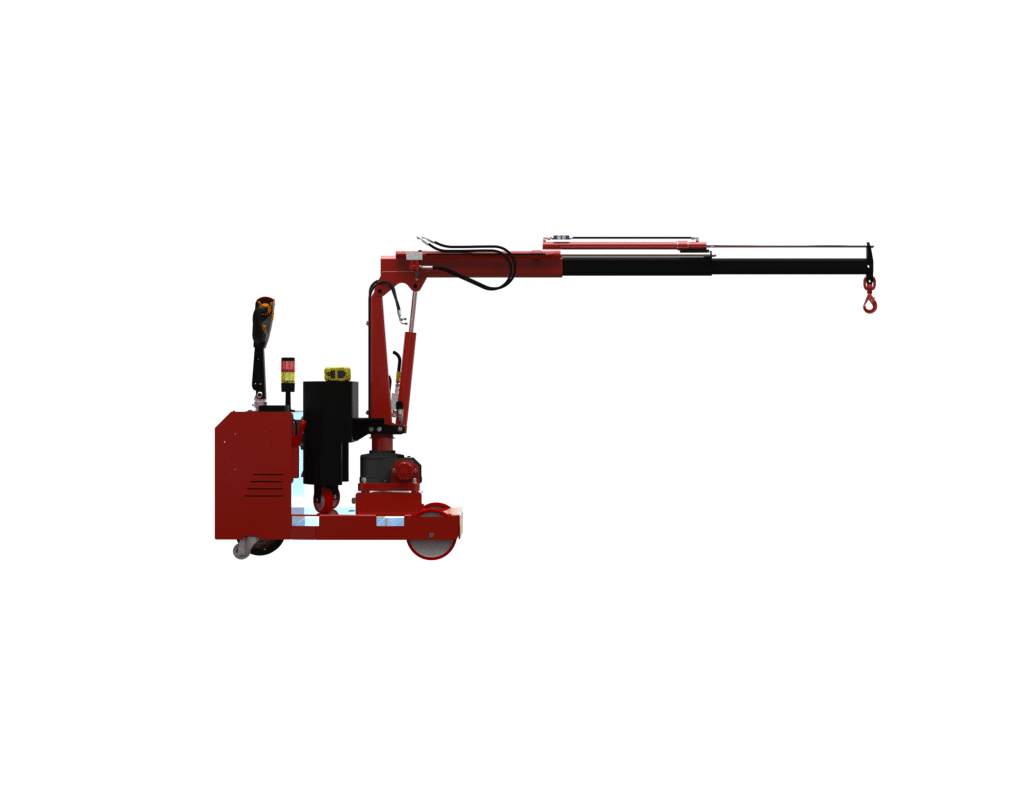

The ORBIT 200ER is equipped with a double electric boom that reaches a free overhang of over 2 meters

One of the key features of this pick and carry crane is that there are no lateral outriggers, therefore this crane grants max mobility with suspended load.

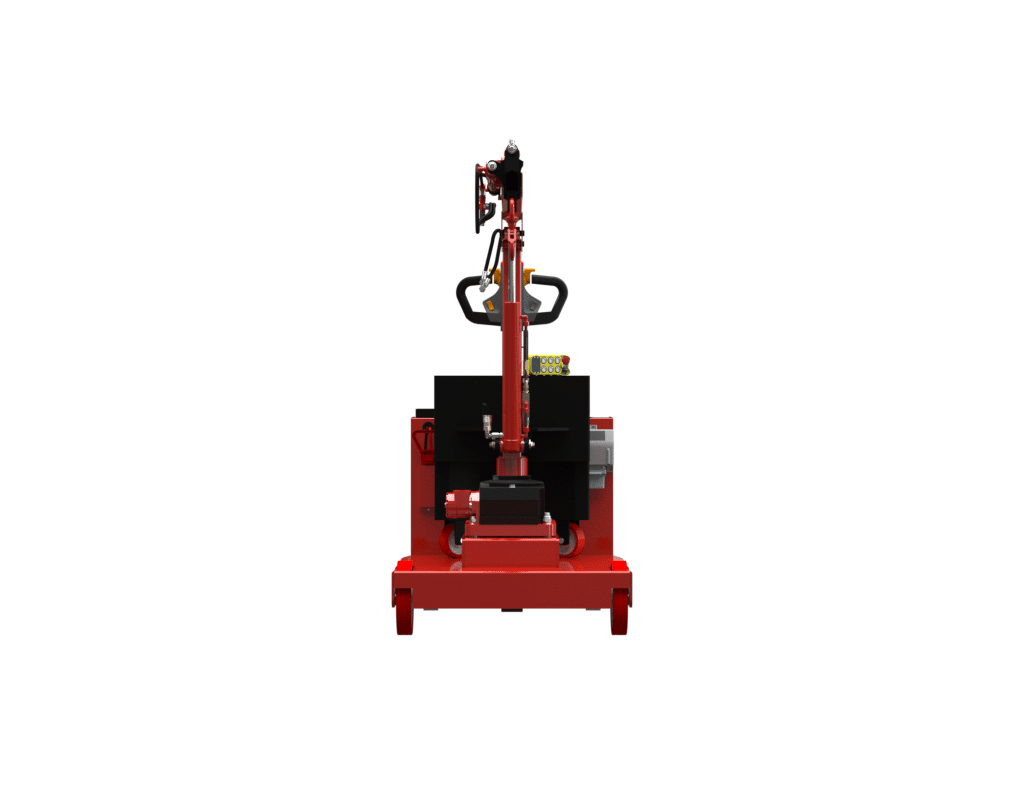

ORBIT 200ER is the motorized cranes with the smallest footprint in its category, being 800 mm wide and 1200mm long.

Our pick and carry crane has an excellent steering angle that allows it to move along the narrow spaces or rotate on its axis in limited spaces.
