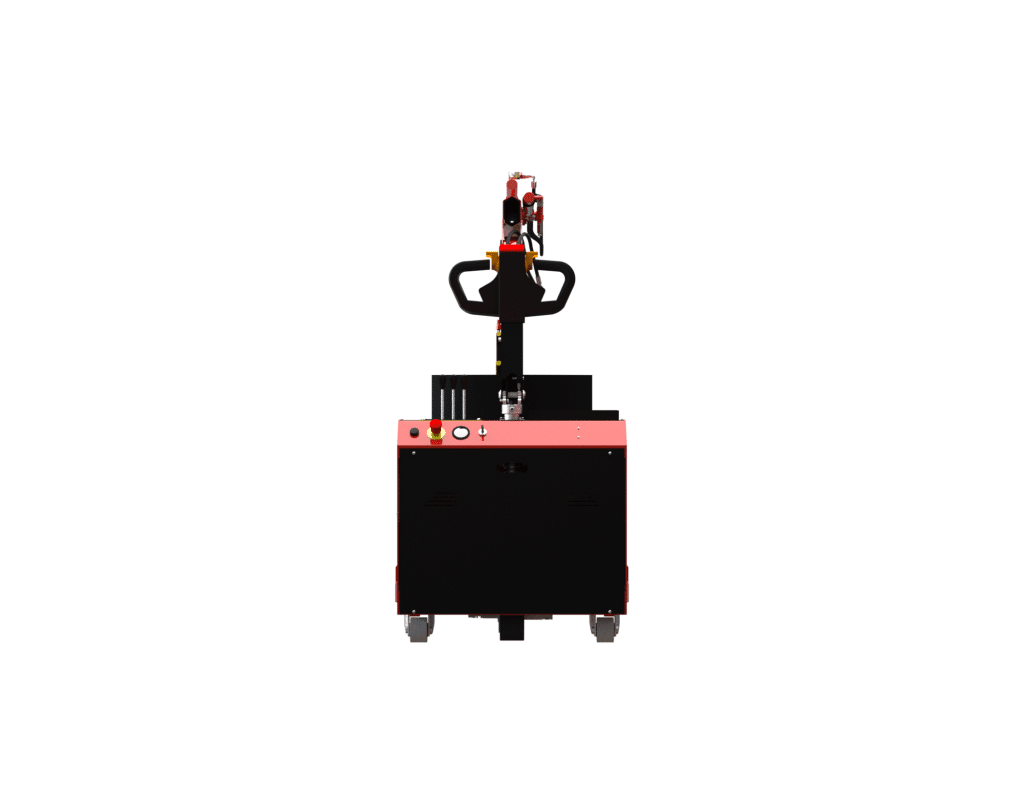

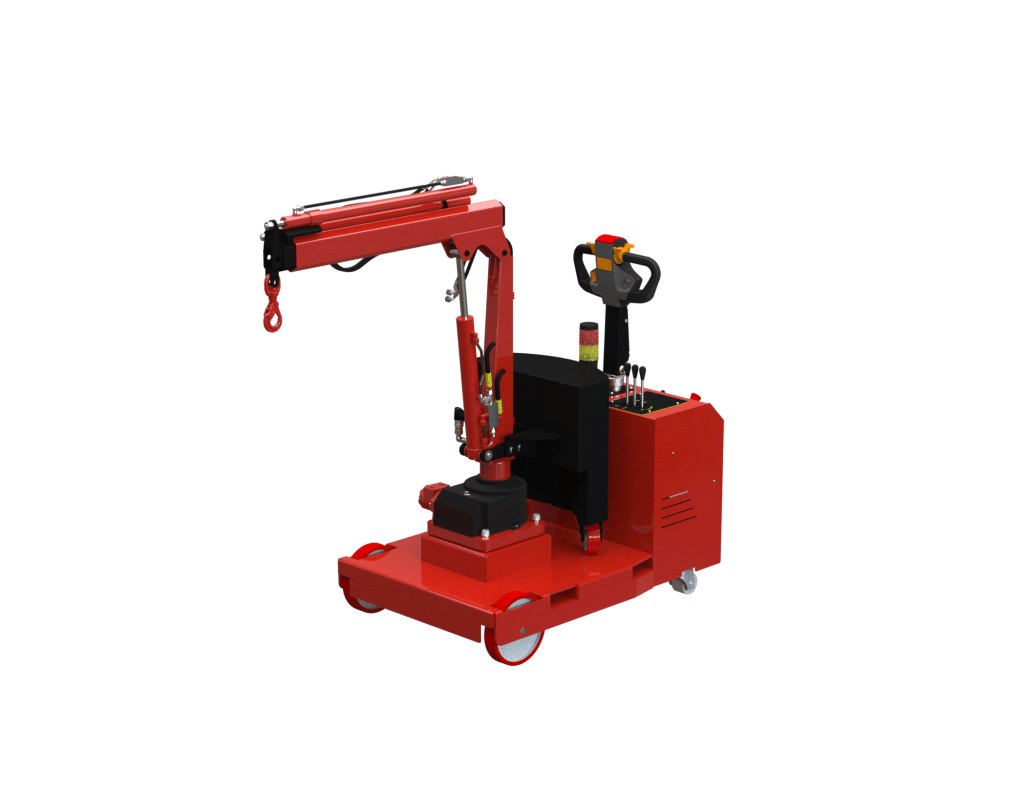

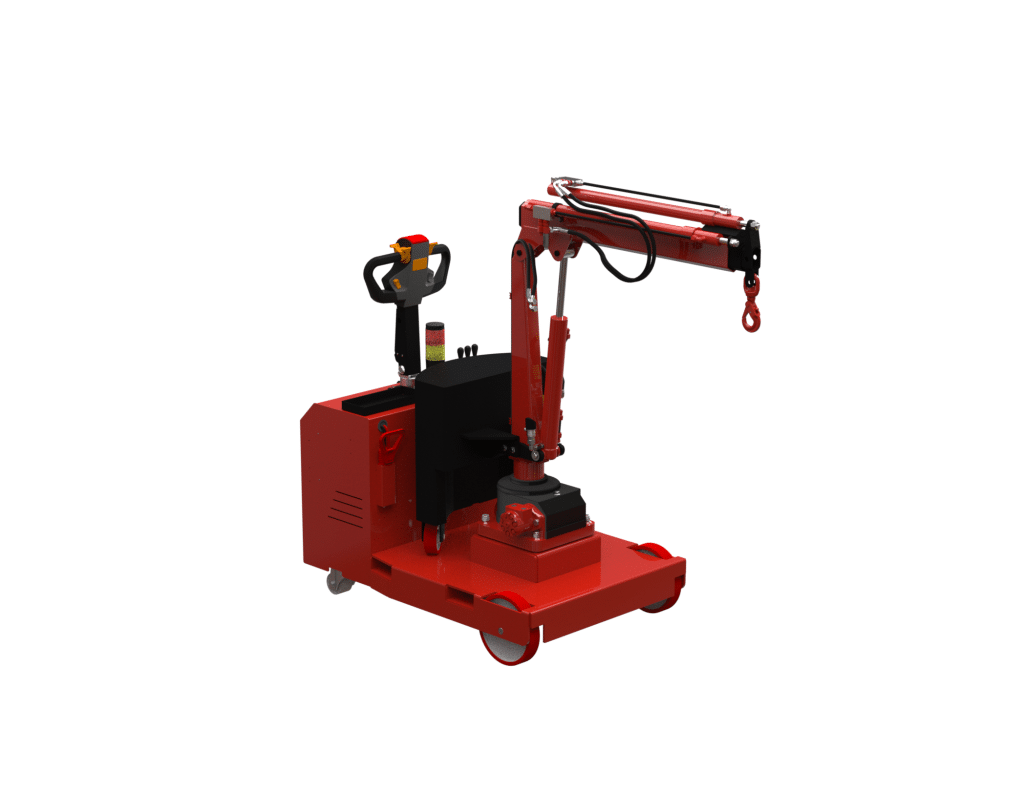

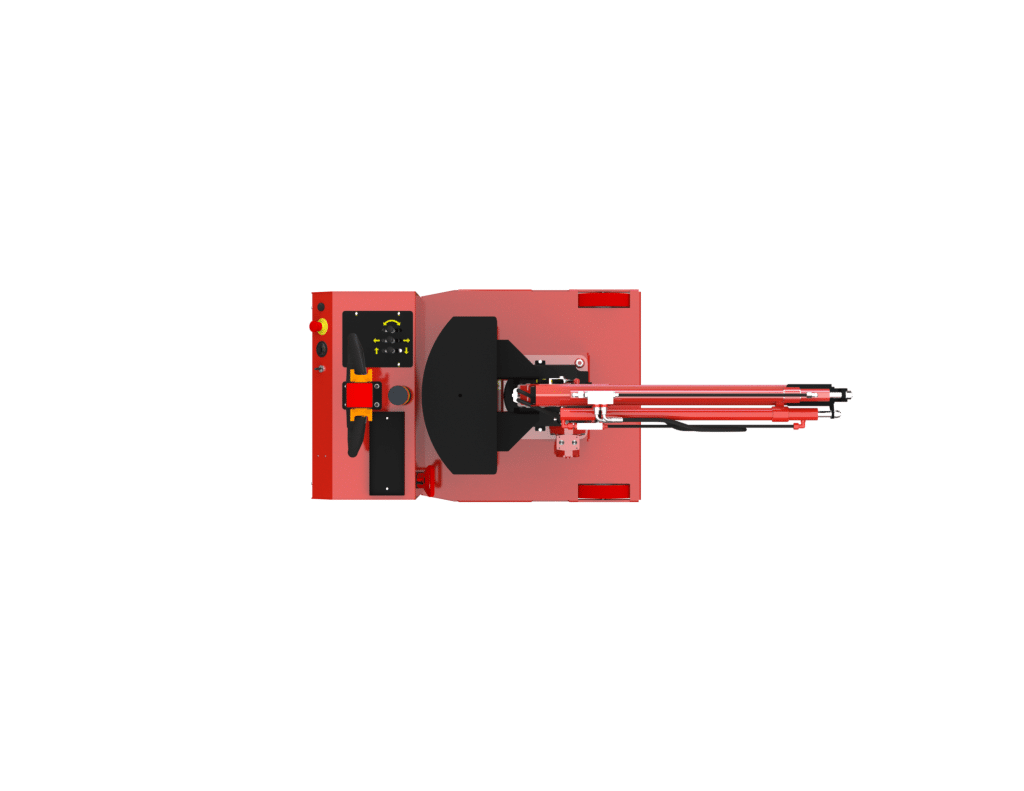

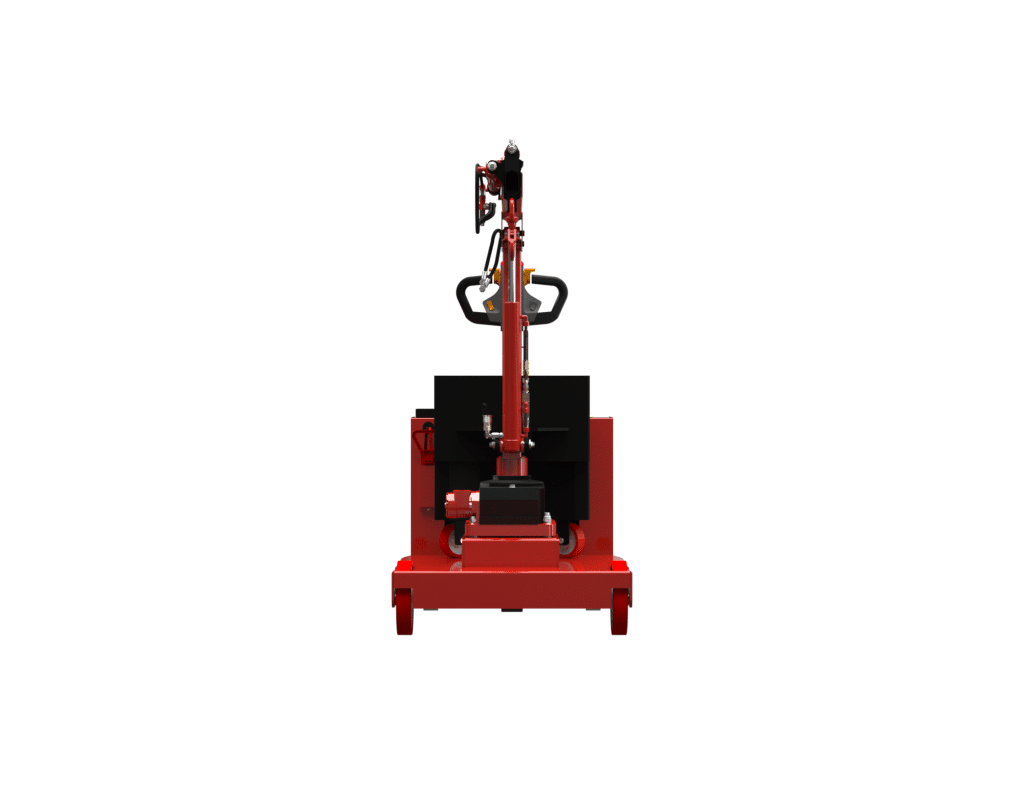

Orbit 200 EL (With Lever Control)

Download BrochureRequest Custom Lifter

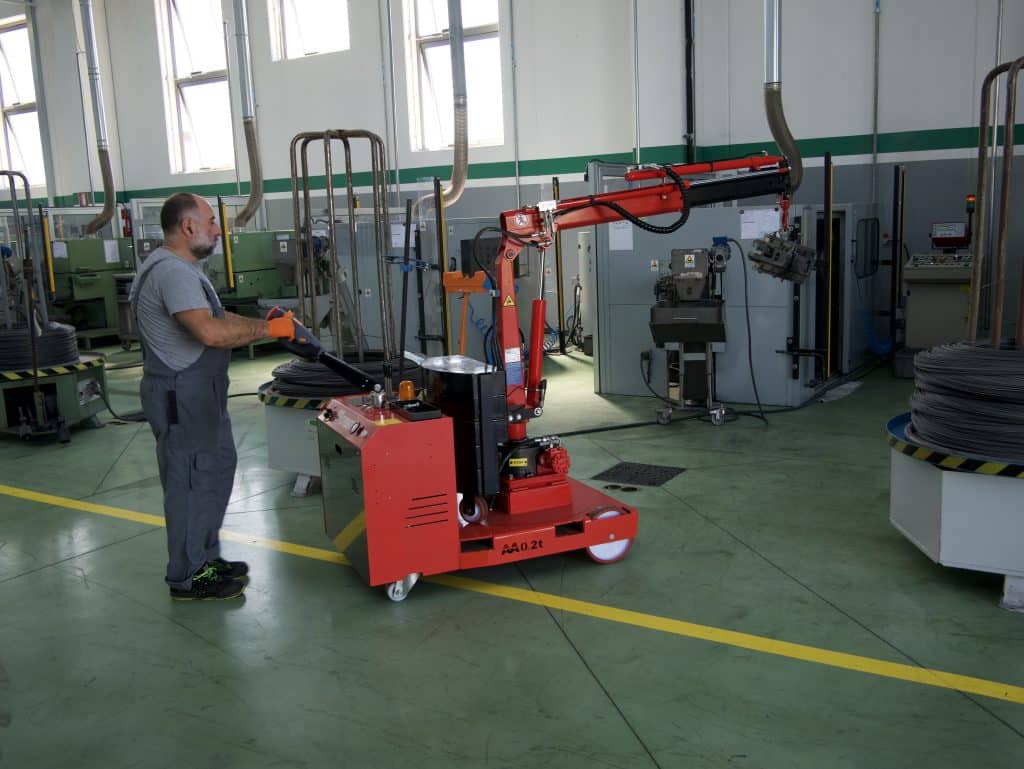

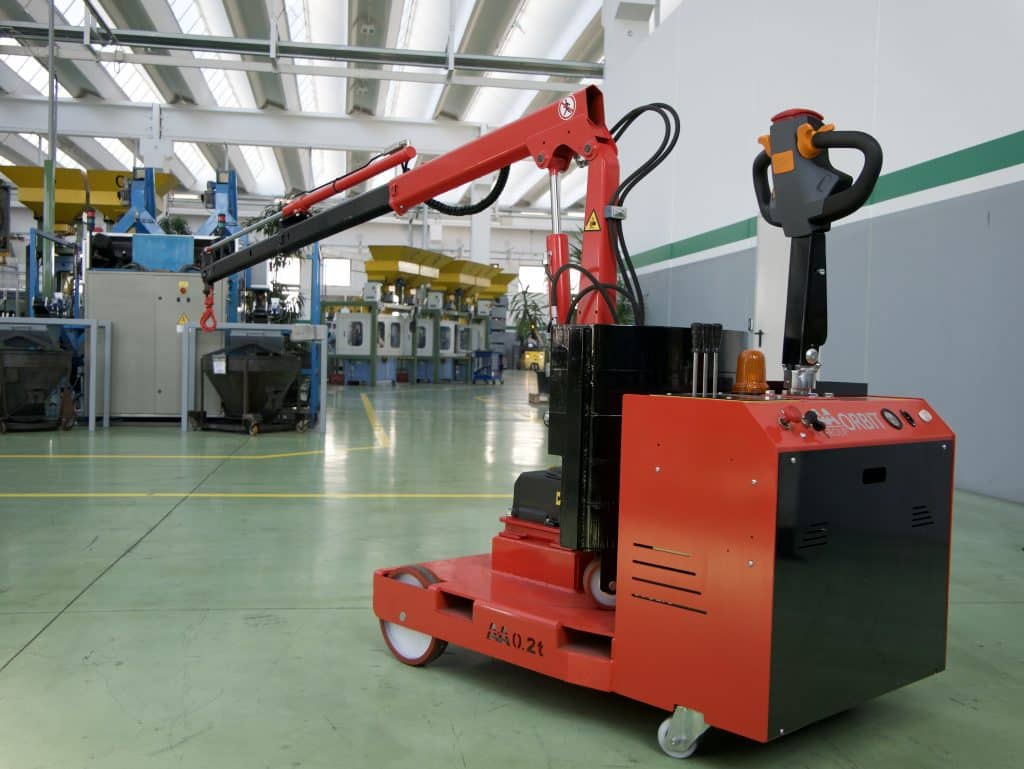

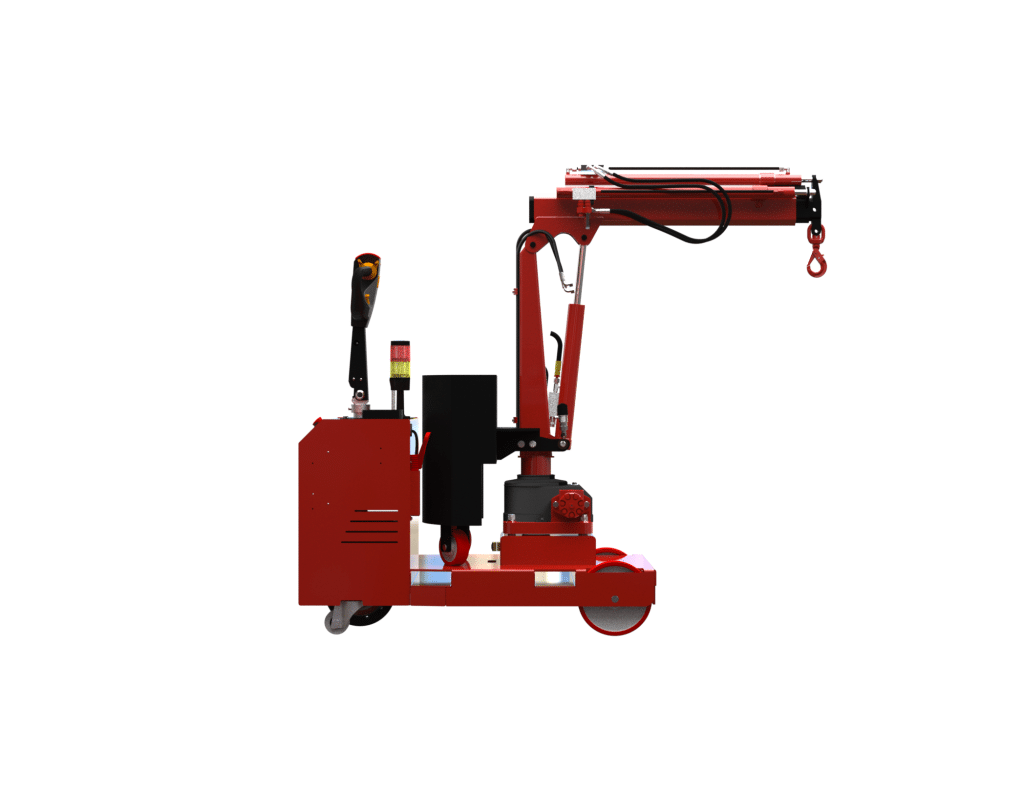

The pick and carry crane ORBIT 200EL is a full electric swivel crane with a capacity of 200kg that is equipped with proportional control levers with adjustable speed. The levers activate the following movements :
  1. Jib upward/downward motion
  2. Jib extension & retraction
  3. Column rotation

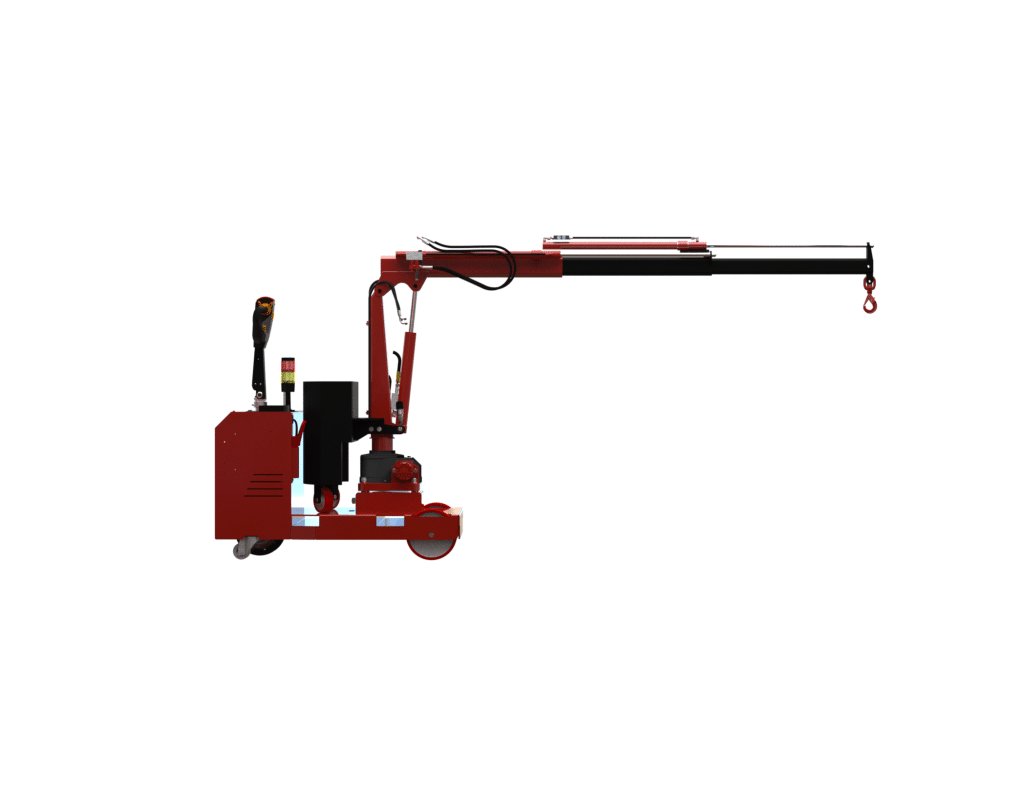

The ORBIT 200EL is equipped with a double electric boom that reaches a free overhang of over 2 meters One of the key features of this pick and carry crane is that there are no lateral outriggers, therefore this crane grants max mobility with suspended load. ORBIT 200EL is the motorised crane with the smallest footprint in its category, being 800mm wide and 1200mm long. Our pick and carry crane has an excellent steering angle that allows it to move along the narrow spaces or rotate on its axis in limited spaces.

Performance and capacity

  • Max capacity (kg) – 200
  • Max overhang (mm) – 2050
  • Max height (mm) – 3500

Dimensions

  • Weight of crane (counterweight incl.) (kg) – 800
  • Frontal footprint (mm) – 800
  • Width w/ arm not rotated (mm/inch) – 800 / 31
  • Width with arm rotated at 90° (mm/inch) – 800 / 31

Movement and operation

  • Traction – Electric. Slow/fast speed: 2-speed driving
  • Column – Swivel 210°
  • Rotation – 210° electric controlled

Lifting system

  • Lifting – Electric with adjustable and proportional speed
  • Lowering – Electric with adjustable and proportional speed
  • Boom – Double electric boom with adjustable speed

Power and motors

  • Battery type standard – Maintenance free AGM
  • Battery nos. (pcs) – 2
  • Battery voltage / nominal capacity (V/Ah) – 12 / 120
  • Lifting motor (W) – 800
  • Traction motor (W) – 1200
Max. lifting capacity 200kg
Max. lifting height 3500
Width 990
Length 1610
