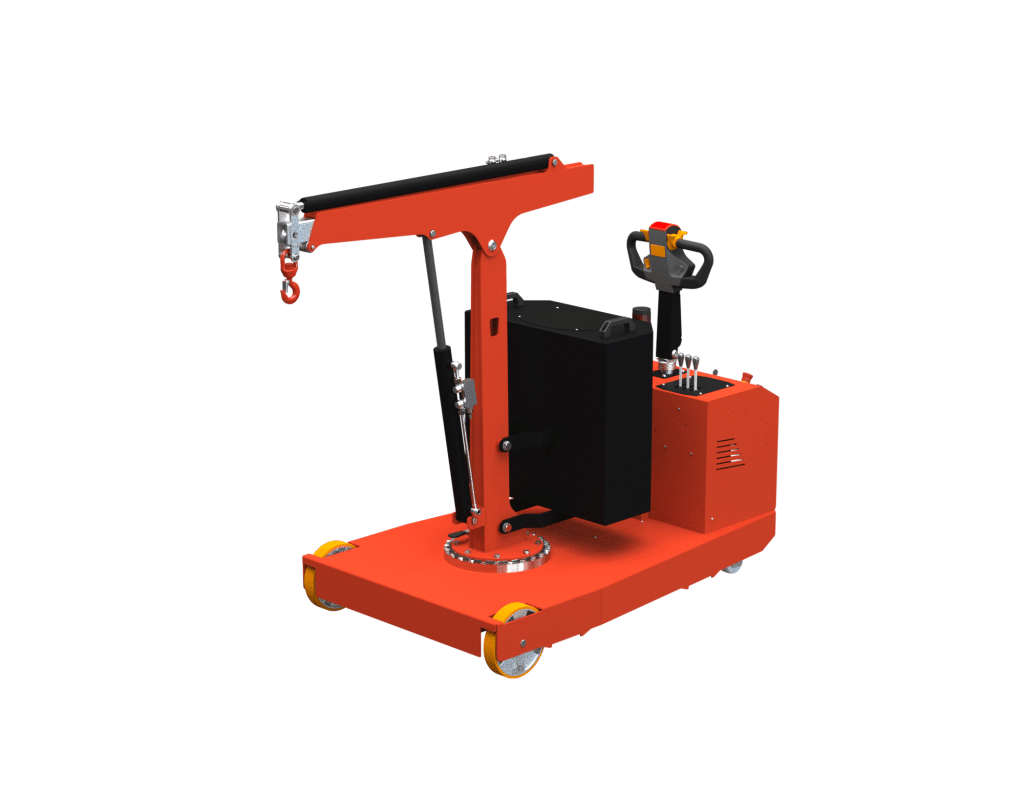

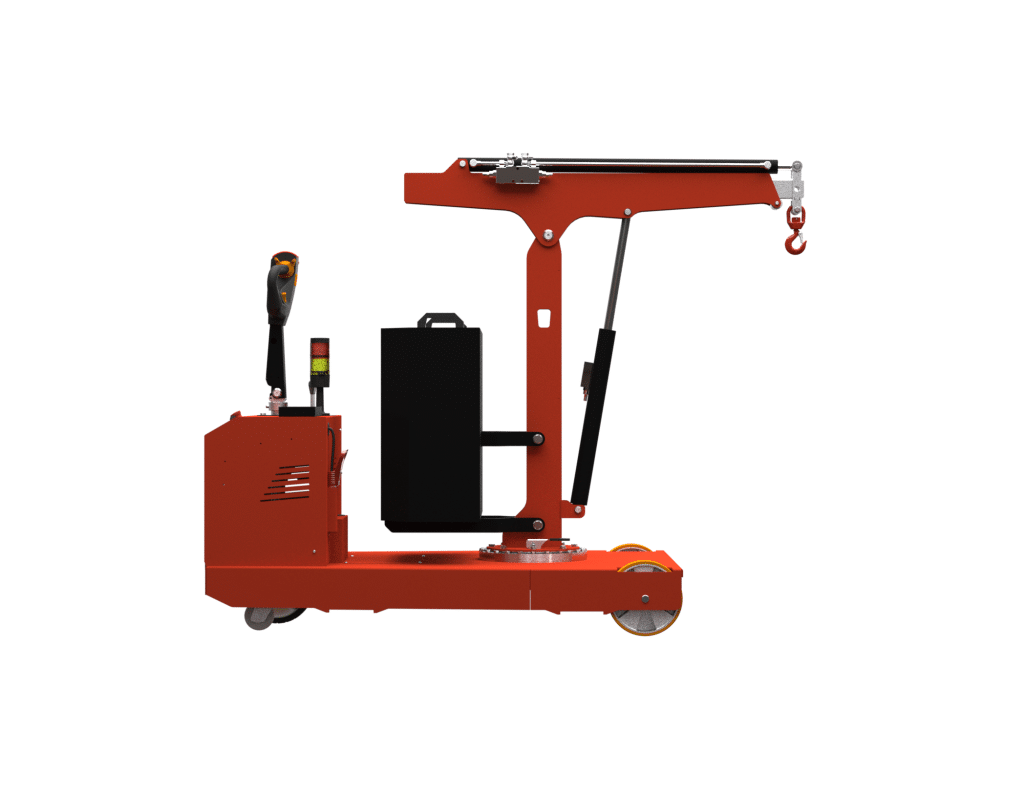

The electric counterbalanced crane FLEX G500SBL is a power driven counterbalanced swivel crane. Capacity 500Kg.
- It is equipped with an easy-sliding drive wheel and a pair of airtight AGM batteries.
- Electric lifting and lowering, extension and retraction at adjustable and proportional speed.
- The electric counterbalanced crane is extremely versatile, agile and easily maneuverable even in confined spaces.

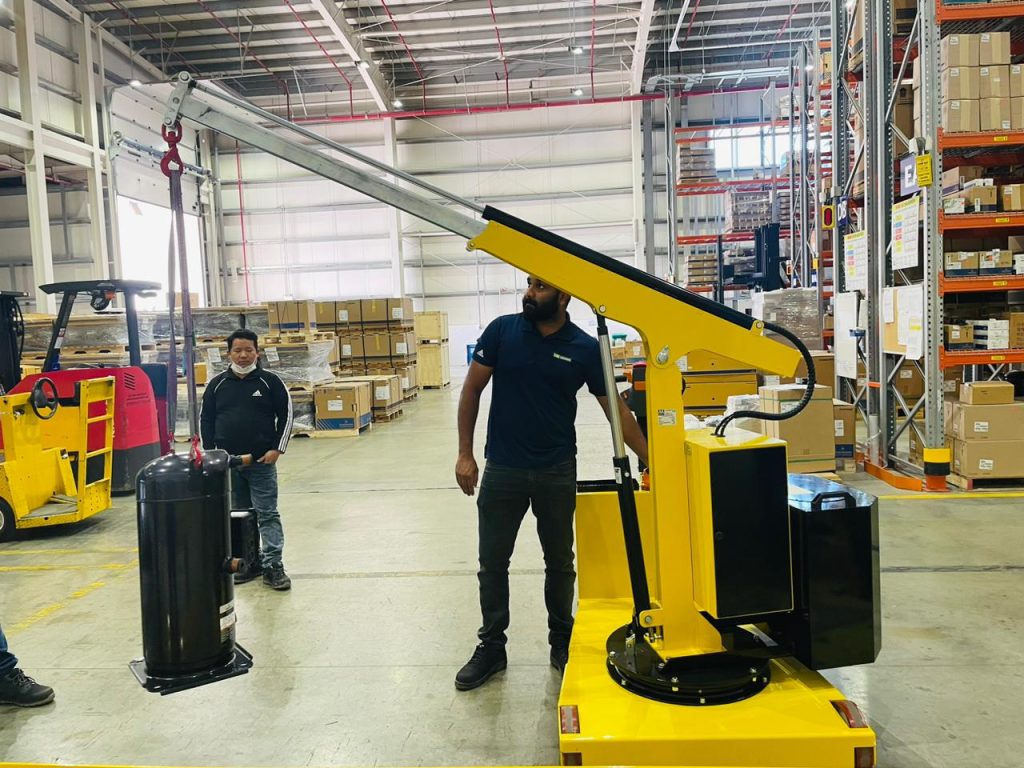

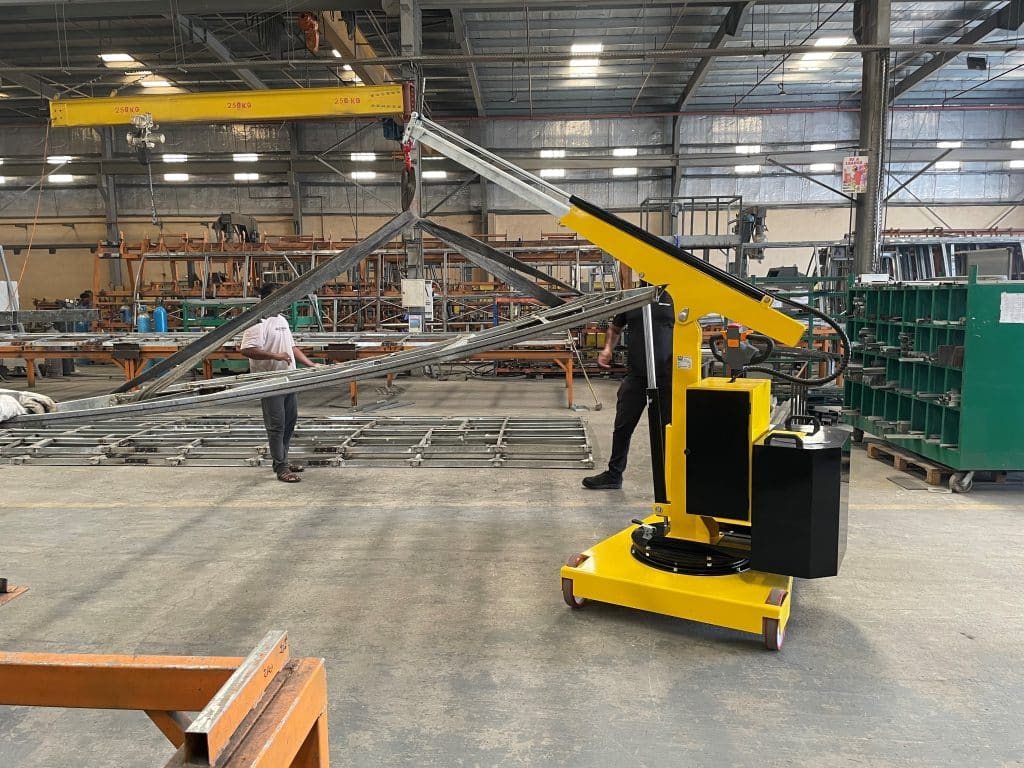

The
counterbalanced mobile mini crane FLEX G500SBL is a
universal lifting solution with unlimited use possibilities. Thanks to its 270 degrees free rotating Jib arm , this

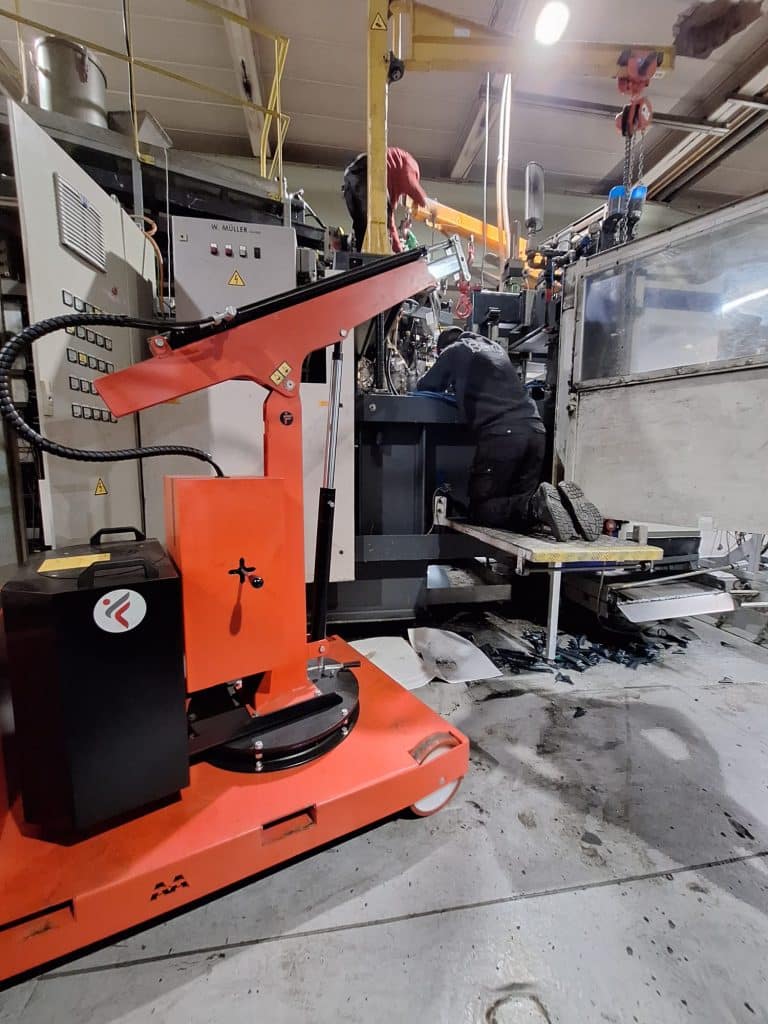

lifting equipment is ideal for placements of moulds and various loads over obstruction/barrier,on 3D machines, lathes,narrow openings, assembly lines and over perimeter protections.
FLEX G500SBL is equipped with a
4-function distribution lever for: arm lifting - arm lowering - boom extension - boom retraction. All movements can be operated with adjustable and proportional speed.

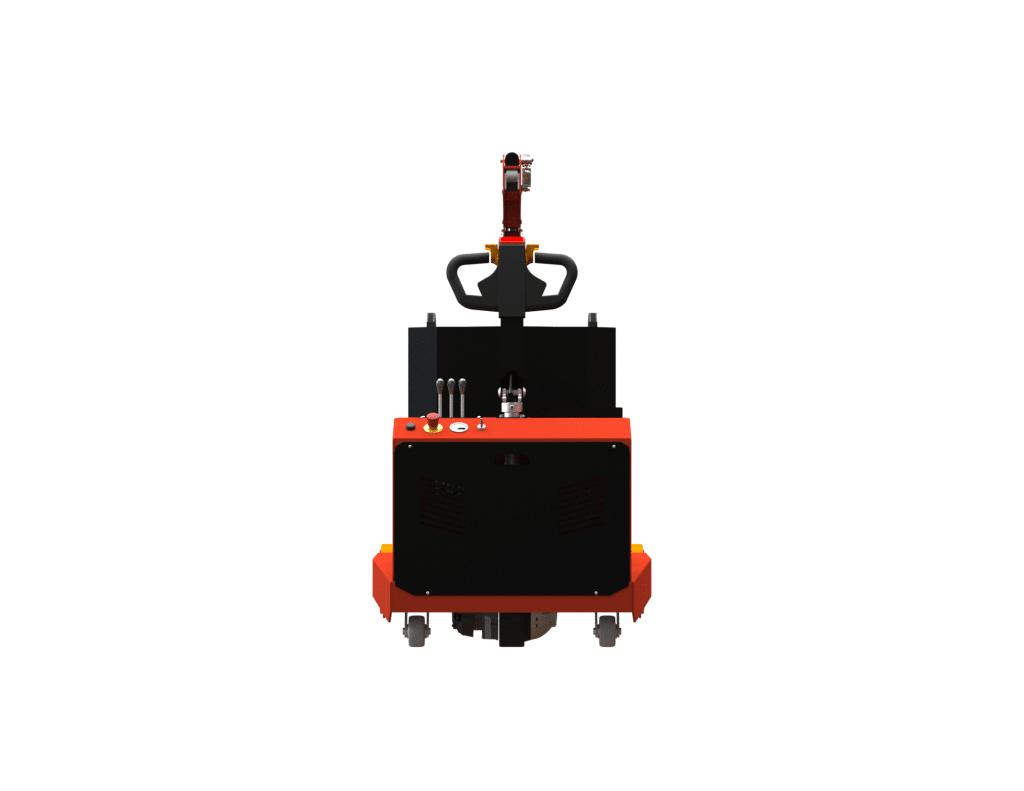

TILLER ARM Maximum ergonomics : the operator can firmly grip the tiller handles with both hands Safe driving : Tiller arm safety switch disables operation in non-allowed positions Slow/fast speed : 2-speed driving Slow mode of 1.5 km/hr ideal for tight spaces and to safely move the load Standard speed of 3.0 km/hr to drive the crane along long distances Audible motion warning device : Horn with anti-noise polyester axial capacitor Anti-crush belly button: anti-crush button with automatic reversing switch to ensure the safety of the operator in every maneuvering operation 2 butterfly controls: for forward travel and backward travel controls
CONTROLS, WARNING LIGHTS AND STANDARD FEATURES 2 position key switch ; emergency button ; Green indicator light showing maximum load position and the upward/downward motion and extension & retraction motion are active; Red control light showing maximum load capacity (when the red light is activated is not possible to lift the load and extend the jib ); Indicator showing the battery charge level; Schuko socket for 220V charge ; Visual warning LED beacon; 24V intermittent buzzer when the crane is moving to increase operator safety; Storage compartment.
POWER DRIVE AC traction motor with recovery braking. Permanent magnet drive wheel in direct current 24V 700W; high frequency MOSFET controller.
- Traction – Electric. Slow/fast speed: 2-speed driving
- Max Capacity (Kg) – 500
- Column – Swivel 270°

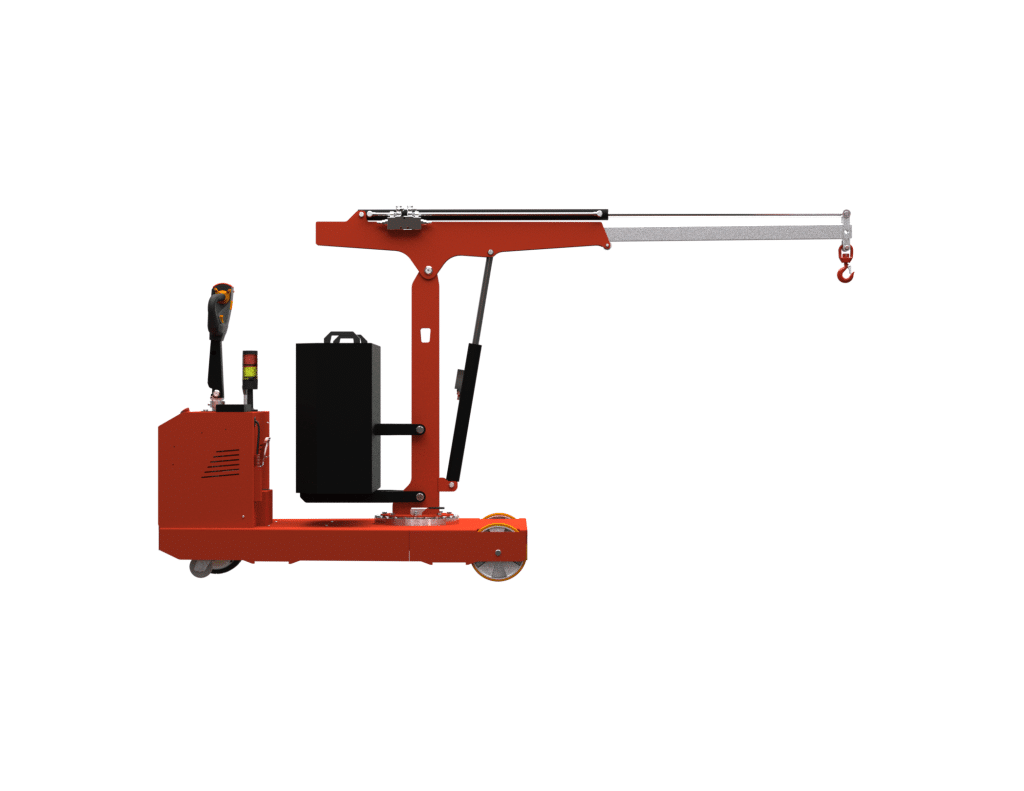

- Max Overhang (mm) – 1430 (1930 with extension)
- Max Height (mm) – 2737

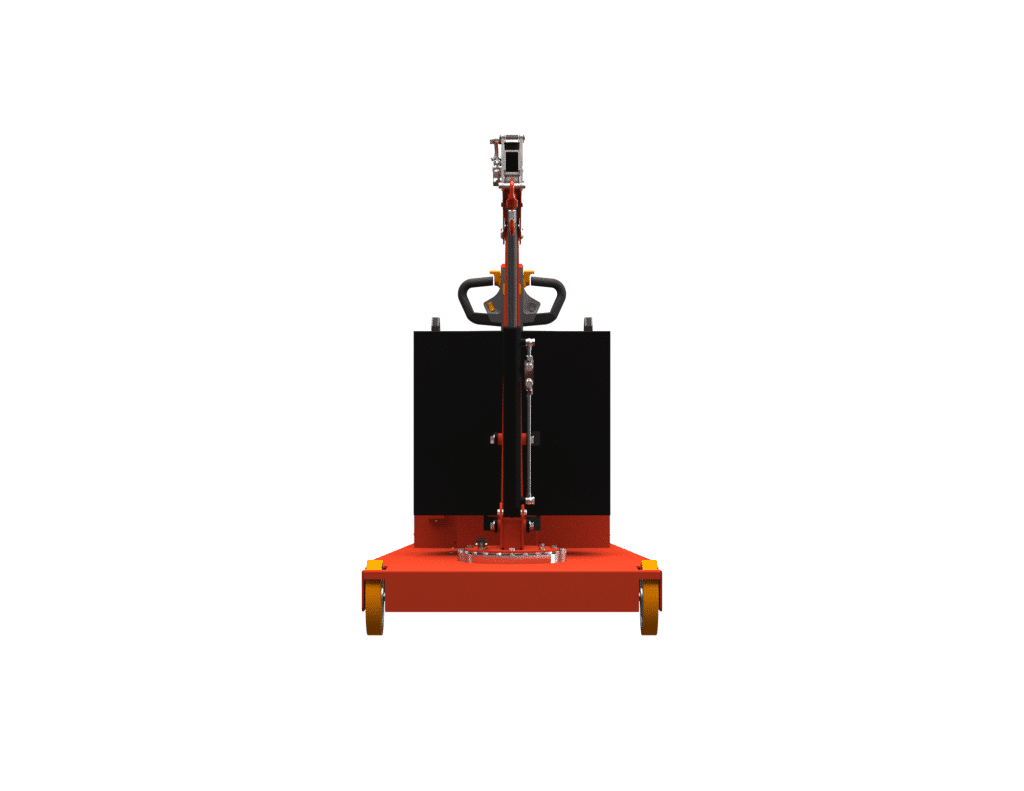

- Frontal footprint (mm) – 990
- Lifting – Electric with adjustable and proportional speed
- Lowering – Electric with adjustable and proportional speed
- Boom – Single electric extension: advance and return at adjustable and proportional speed
| Max. lifting capacity |
500kg |
| Max. lifting height |
2411 |
| Width |
990 |
| Length |
1610 |
