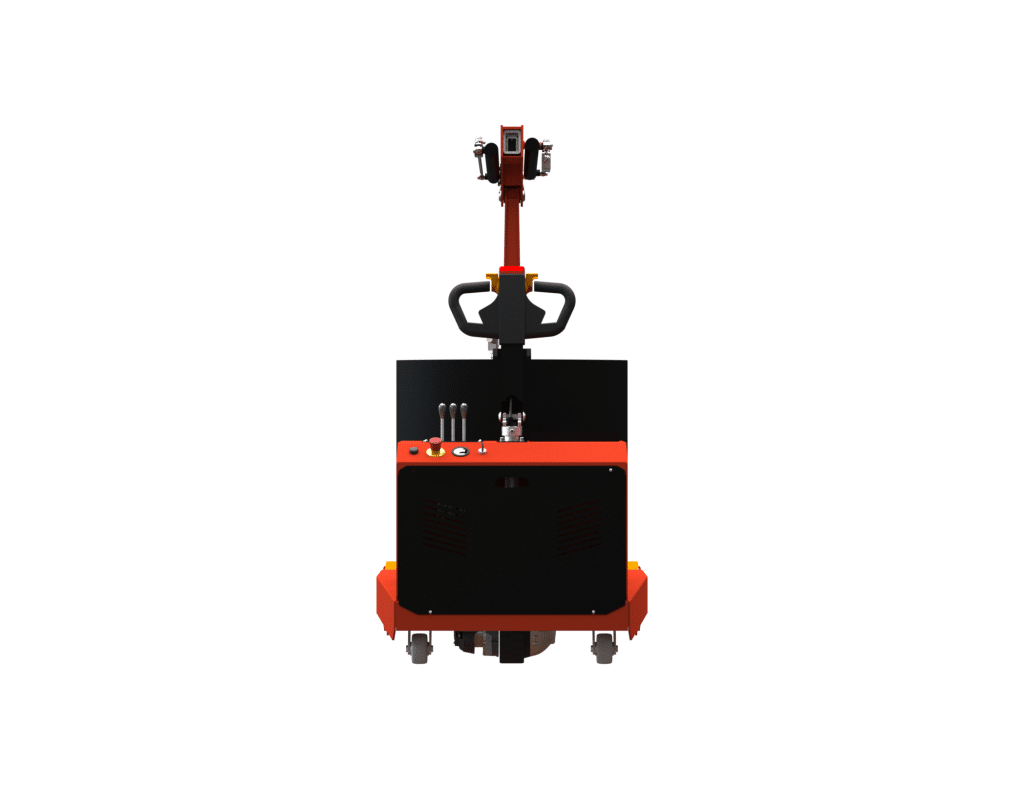

Flex G1000 DBL (With Lever Control)

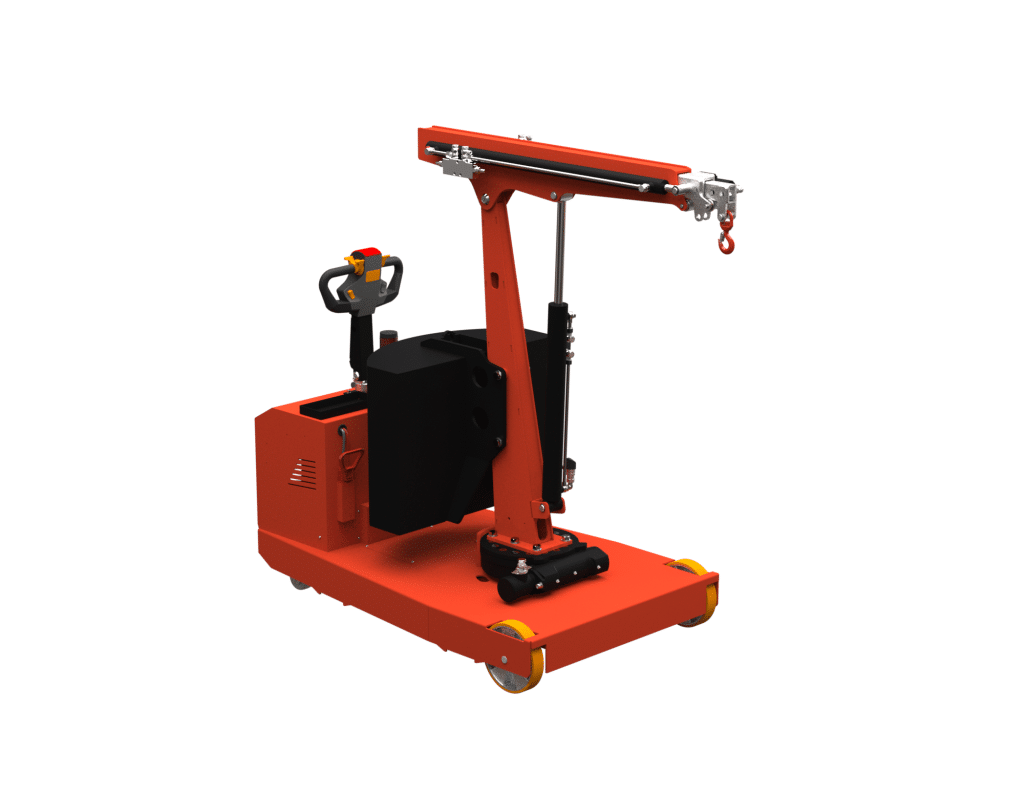

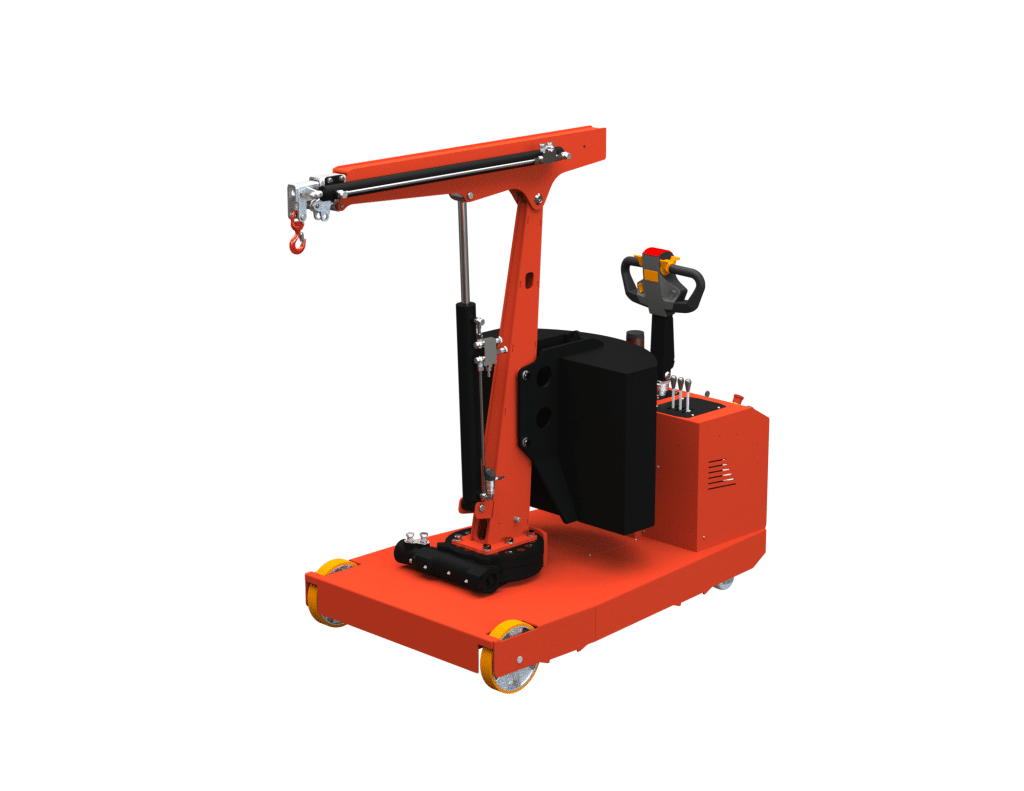

The full electric counterbalanced crane FLEX G1000DBL is a power driven counterbalanced swivel crane with 1.000 kg lifting capacity.
- It is equipped with an easy-sliding drive wheel and a pair of airtight AGM batteries.
- Electric lifting and lowering, extension, retraction and rotation at adjustable and proportional speed.
- This electric counterbalanced crane is extremely versatile, agile and easily maneuverable even in confined spaces.

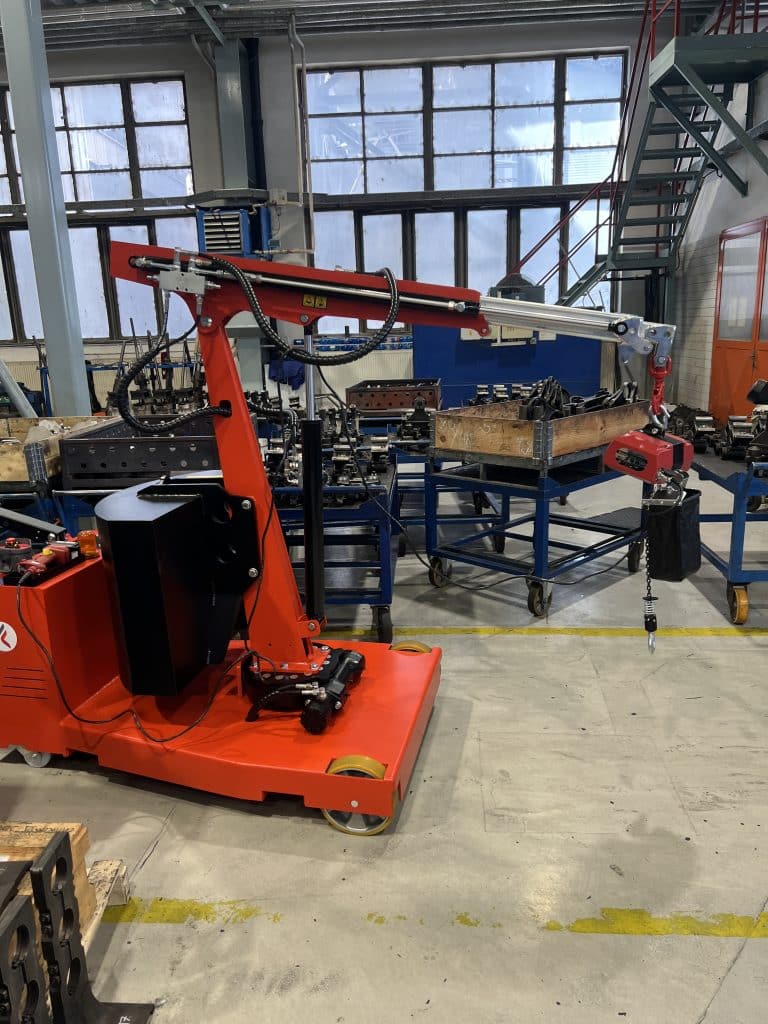

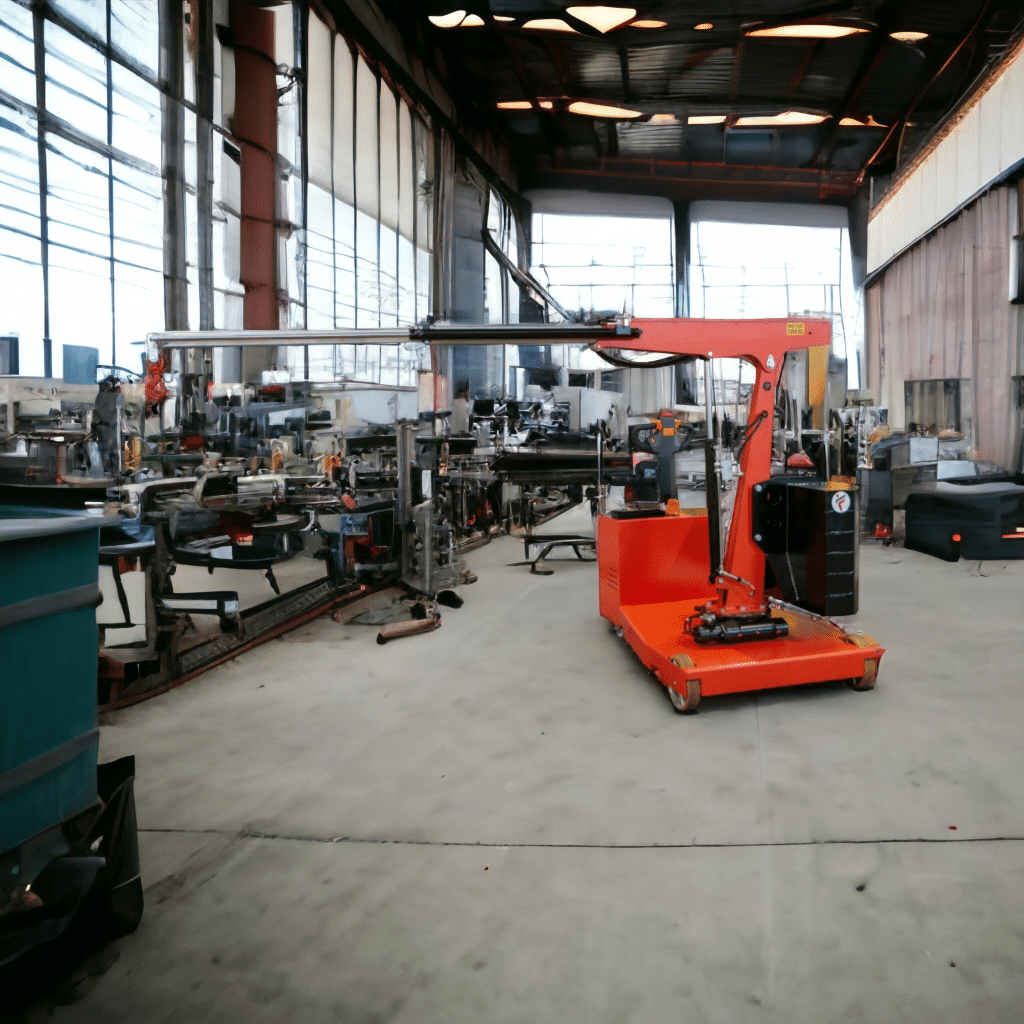

The counterbalanced mobile mini crane FLEX G1000DBL is a universal lifting solution with unlimited use possibilities. Thanks to its 220 degrees free rotating Jib arm , this lifting equipment is ideal for placements of moulds and various loads over obstruction/barrier, on 3D machines, lathes, narrow openings, assembly lines and over perimeter protections.
Flex G1000DBL is equipped with 2 control levers that make it possible to activate the upward/downward motion of the jib arm as well as the extension, retraction and rotation with progressive speed.
- Traction – Electric. Slow/fast speed: 2-speed driving
- Max Capacity (Kg) – 1000
- Column – Swivel 220°

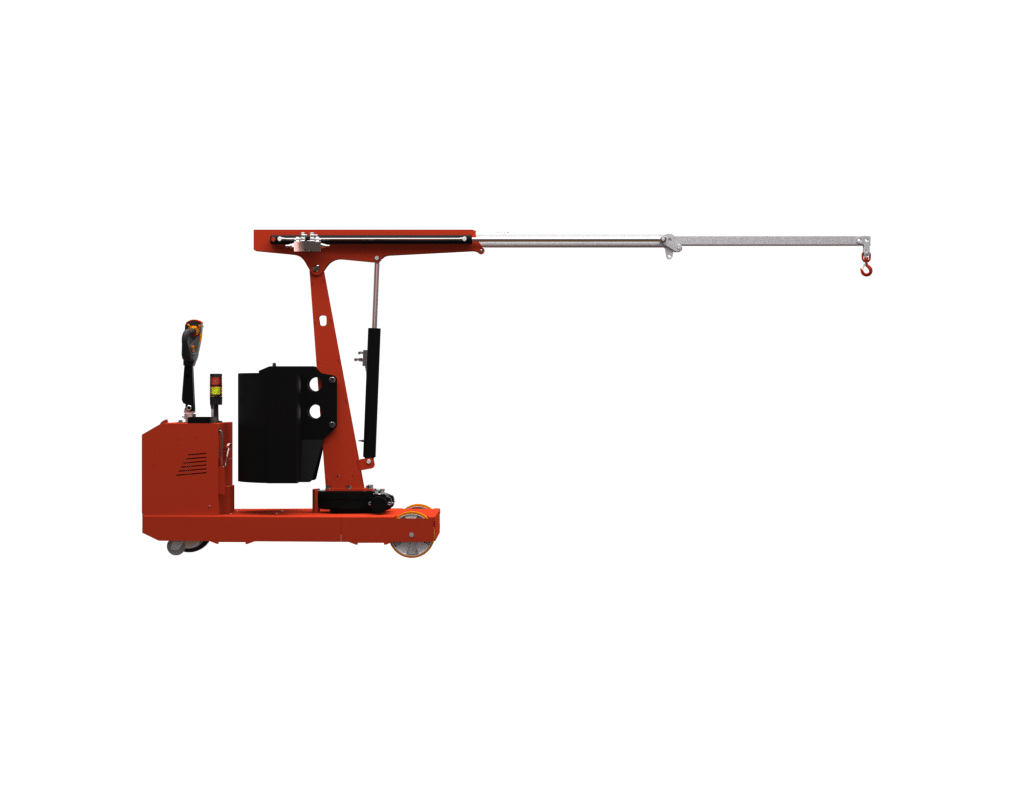

- Max Overhang (mm) – 2400
- Max Height (mm) – 4077

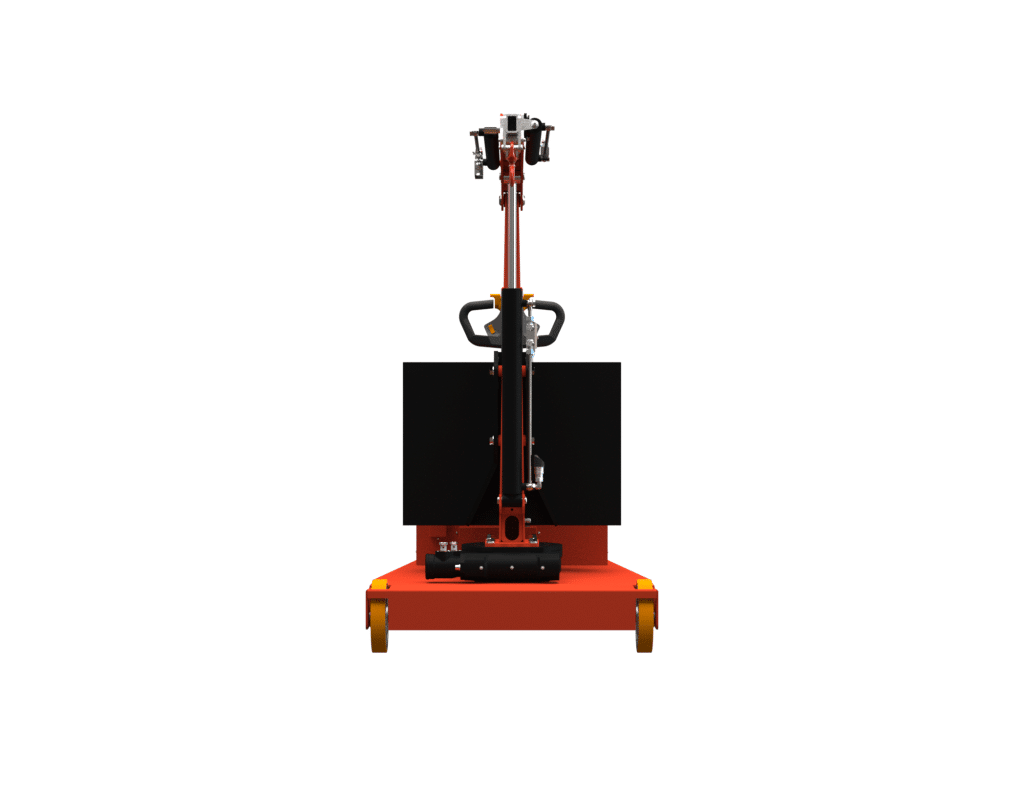

- Frontal footprint (mm) – 1000
- Lifting – Electric with adjustable and proportional speed
- Lowering – Electric with adjustable and proportional speed
- Boom – Double electric boom with adjustable speed
| Max. lifting capacity | 1000kg |
|---|---|
| Max. lifting height | 4077 |
| Width | 990 |
| Length | 1610 |
