Specification:

  • Powered lift/lower jib arm
  • Manual push/pull
  • Lift/Lower powered by 12v 110 Ah, powering electro hydraulic
  • Lift/lower controlled by pendant progressive lever with emergency stop
  • Unique 270 degree free rotating Jib arm with 5 locking positions
  • Max SWL 200kg

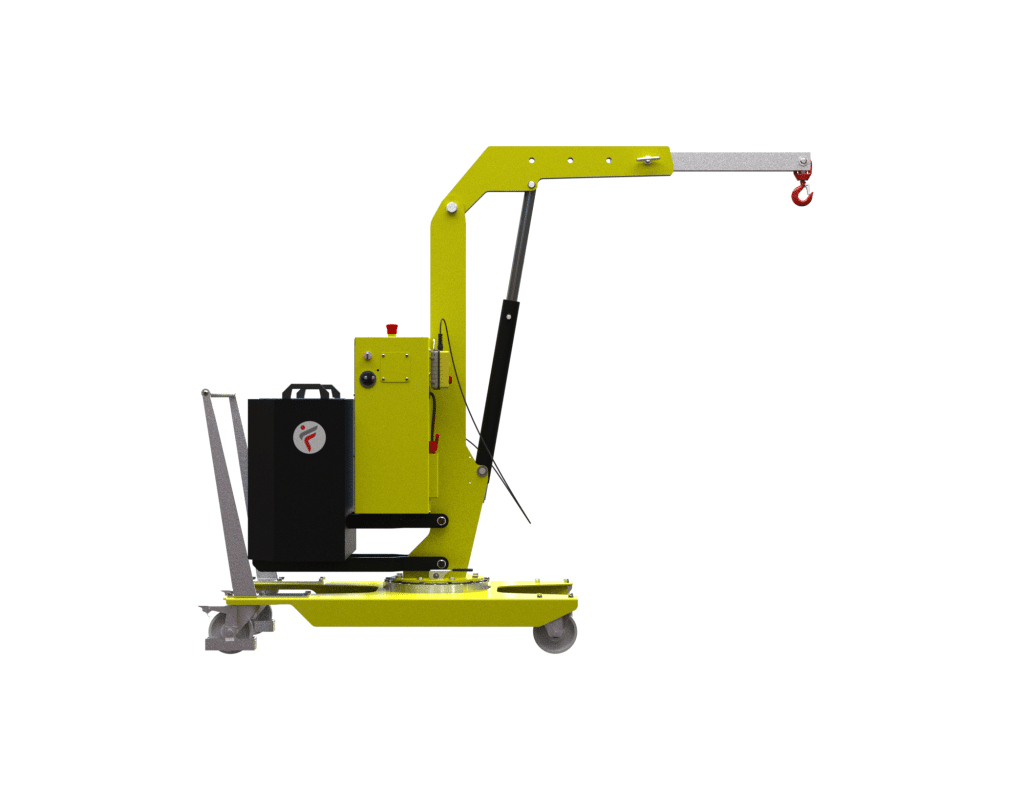

  • Jib extension manual
  • Maximum standard extension 860mm
  • Maximum with optional extended jib arm 1360mm
  • Max lift height 2804mm
  • O/A dimensions with jib arm down L1342 x W955 x H1780mm
  • Machine weight 440kg
  • Fixed front wheels
  • Rear rotating castors with brake
  • CE marked (Complete with SWL test certificate)
  • EN standards compliant

Enquire About This Equipment

This field is for validation purposes and should be left unchanged.

This counterbalanced crane stands as a testament to efficiency and adaptability in lifting operations, offering a host of impressive features. With its powered lift/lower jib arm, load positioning becomes effortless. Powered by a 12v 110 Ah source, the electro-hydraulic system ensures smooth and controlled lift/lower actions, making use of a pendant progressive lever with an emergency stop for added safety.

A standout feature is the unique 270-degree free-rotating jib arm, featuring five locking positions that optimize versatility. Boasting a maximum safe working load (SWL) of 200kg, it is well-equipped to handle diverse loads. The manual jib extension adds an extra layer of flexibility, featuring a standard extension of 860mm and the option for an extended jib arm, reaching an impressive 1360mm. The equipment’s maximum lift height of 2804mm enables easy access to elevated areas.

Measuring L1342 x W955 x H1780mm with the jib arm lowered, the equipment possesses a robust machine weight of 440kg. Fixed front wheels contribute to stability, while rear rotating castors, complete with a brake system, ensure precise movement control during operation. Notably, the equipment bears the CE mark and includes an SWL test certificate, attesting to its adherence to stringent safety standards. Its full compliance with EN standards further solidifies its reputation as a dependable and versatile tool, making it a valuable asset across diverse industries.

The lifter Lift Safe supplied is excellent, both operators of the laying machine have said its works perfectly and saves a lot of heavy lifting sometimes with 2 people, as you will see from the photos the roll needs to be lifted to almost head height so previously it was a struggle, however with your lifter the job is much easier and safer now.

Mike Greer. Manager. AMR Textiles
