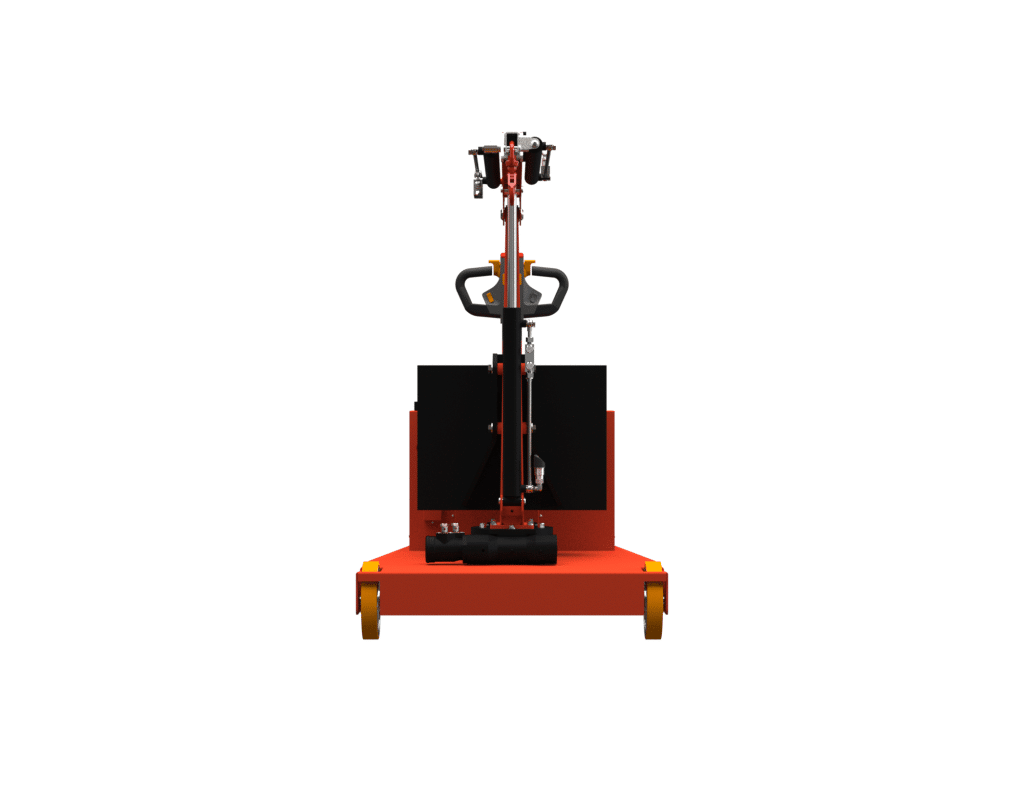

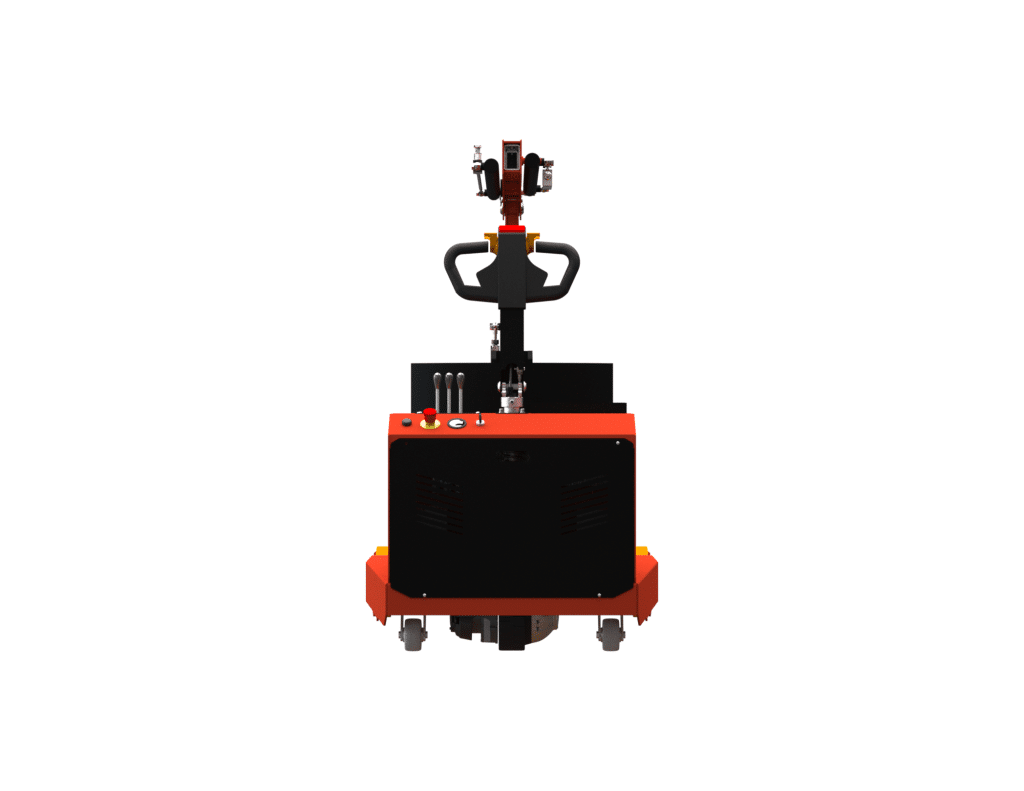

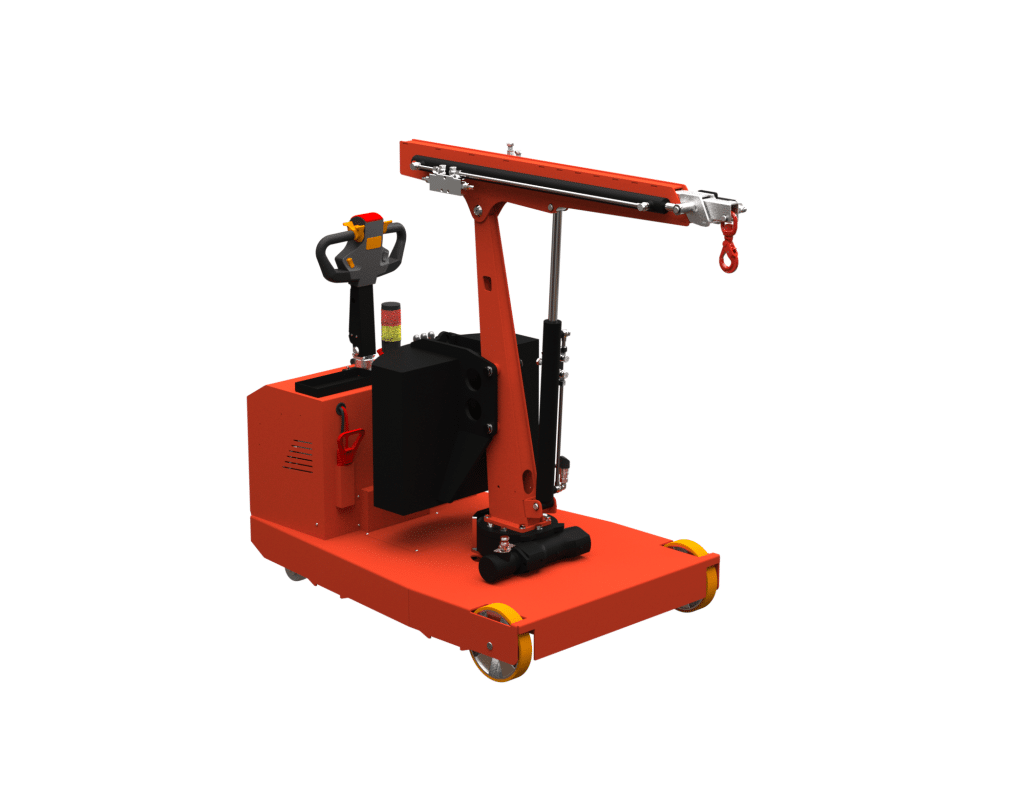

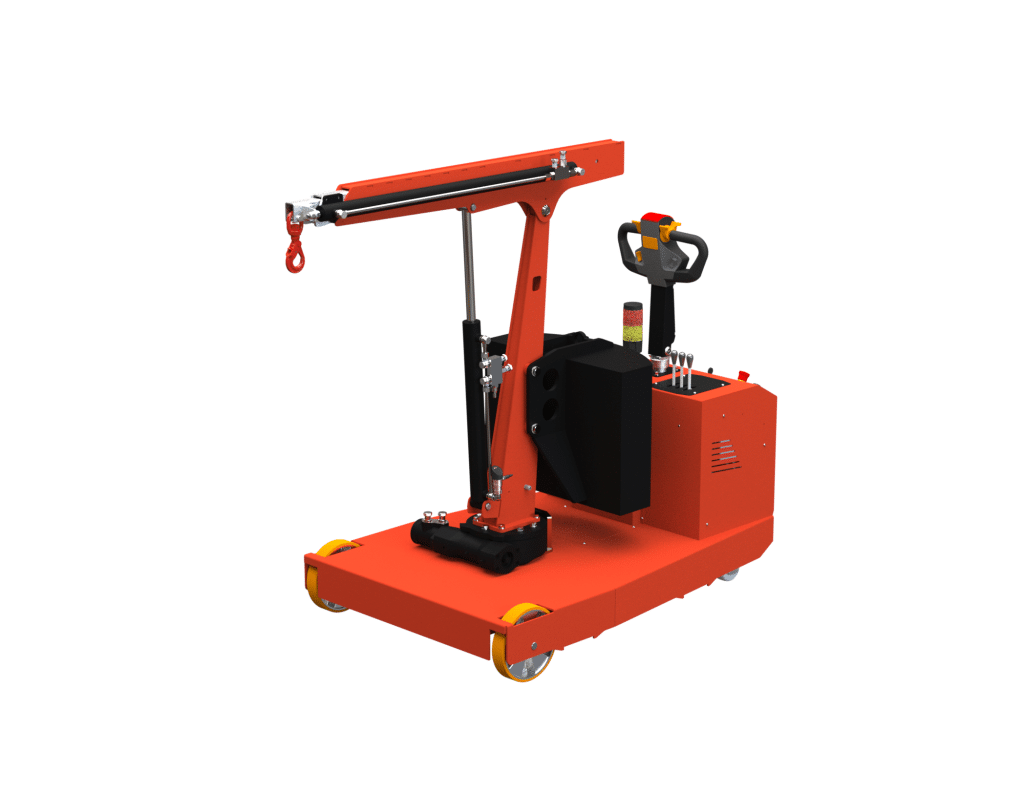

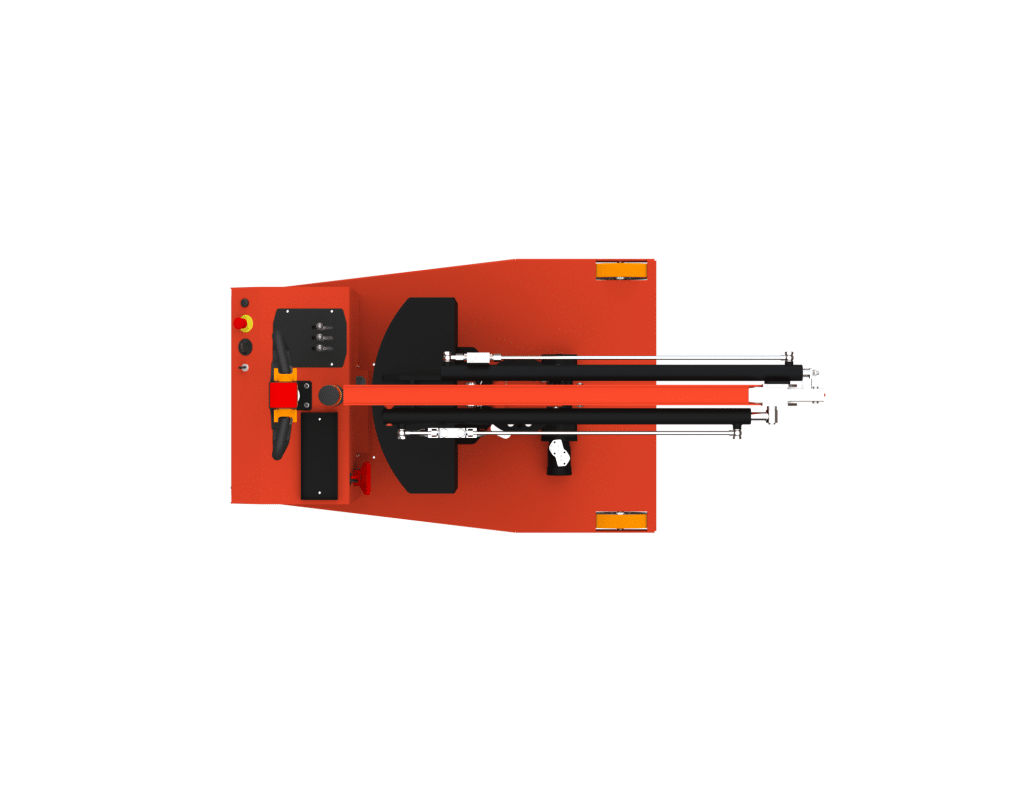

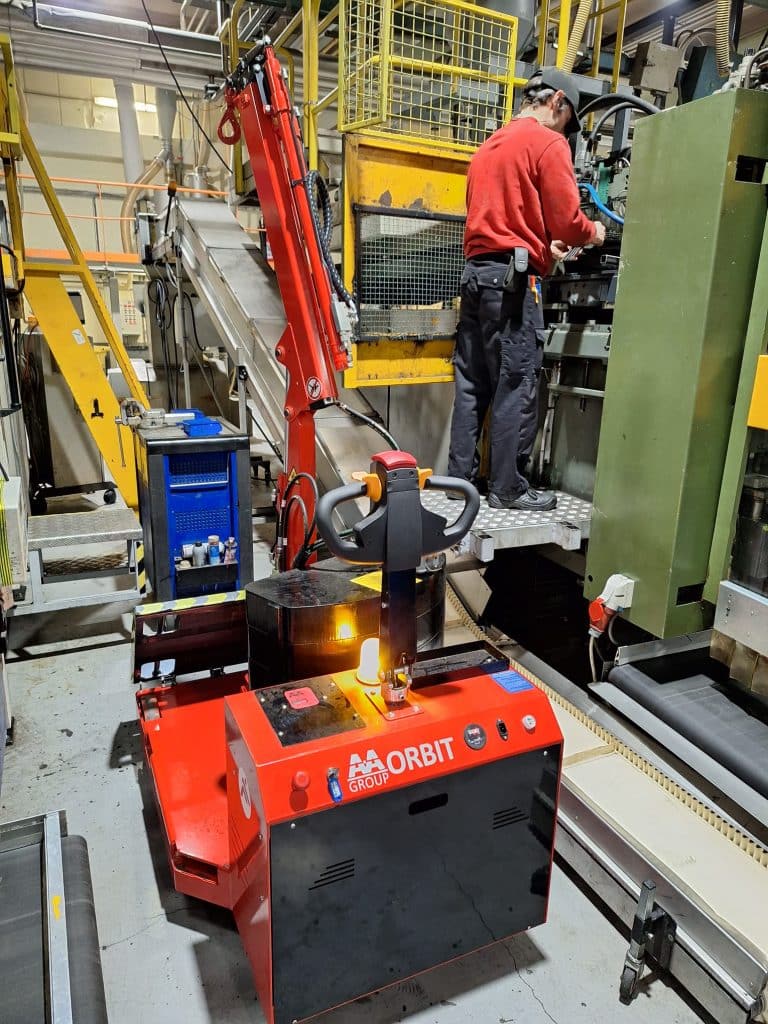

The battery powered mobile crane ORBIT 500EL is a full electric swivel crane with a capacity of 500 Kg.

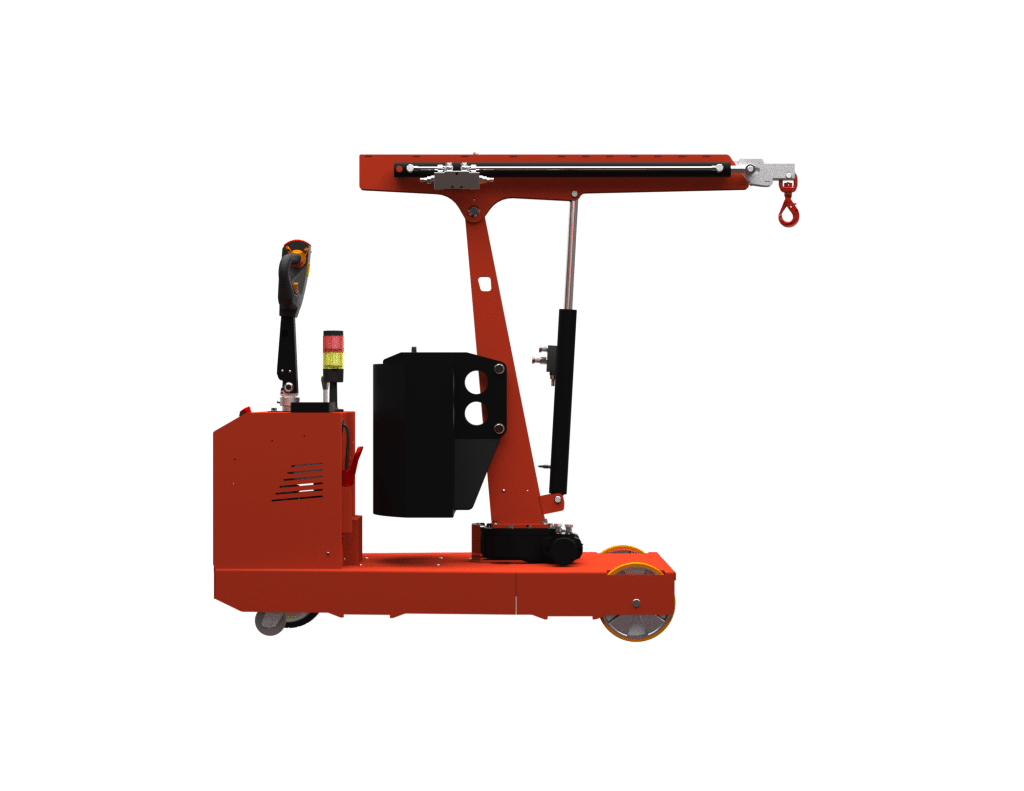

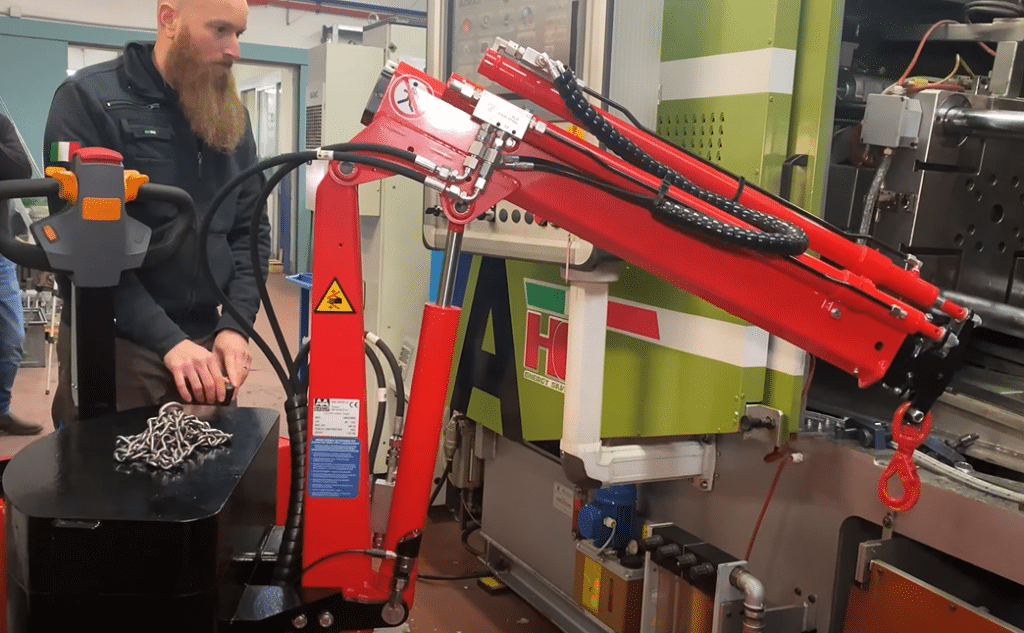

The ORBIT 500EL is equipped with a double electric boom that reaches a free overhang of 2 meters.
It is equipped with control levers that make it possible to control the jib arm movements with adjustable and progressive speed.
Levers are used to active the following movements:
- jib upward/downward motion
- jib extension & retraction
- column rotation

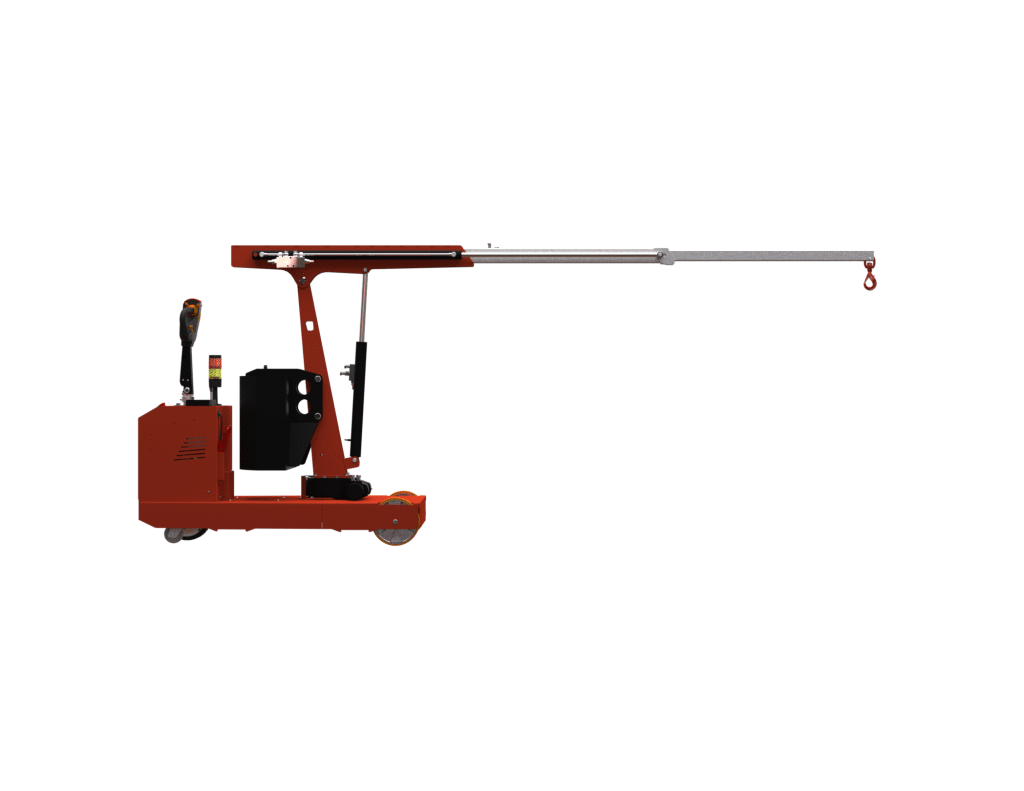

One of the key features of this pick and carry crane is that there are no lateral outriggers, therefore this crane grants max mobility with suspended load. This battery powered mobile crane has an excellent steering angle that allows it to move along the narrow spaces or rotate on its axis in limited spaces. Maximum lifting height 3700 mm. Free overhang (from the end of the base) both lateral and frontal reach up to 2000 mm . Equipped with AGM batteries that can be recharged in areas with limited ventilation.
Orbit 500EL is a full electric crane that can be used in all sectors being silent, environmentally friendly and zero-emission. In line with Health and Safety international standards (emergency buttons, warning devices, relief and check valves). It is equipped with a maximum load dynamic throttling device , which prevents the crane from loading beyond maximum range at each point of the slide by inhibiting the ascent and feed controls until the operator re-enter the load within the permitted limits.

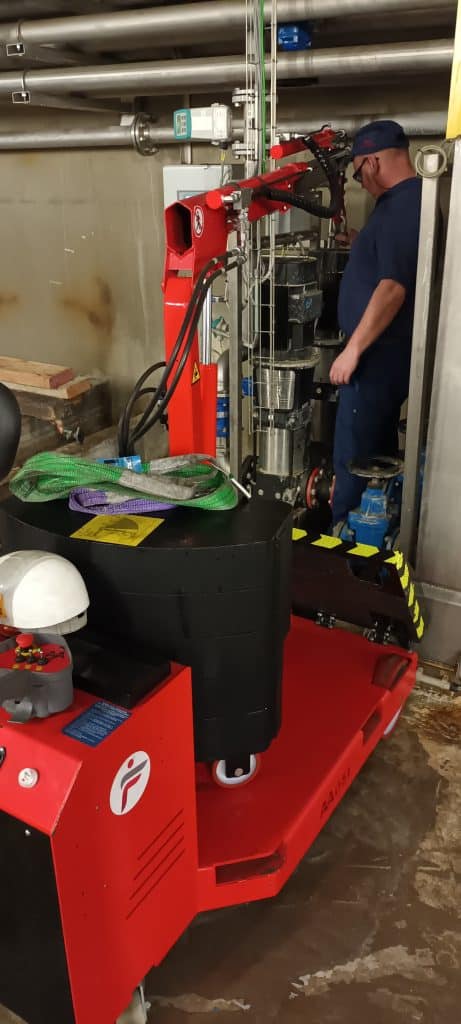

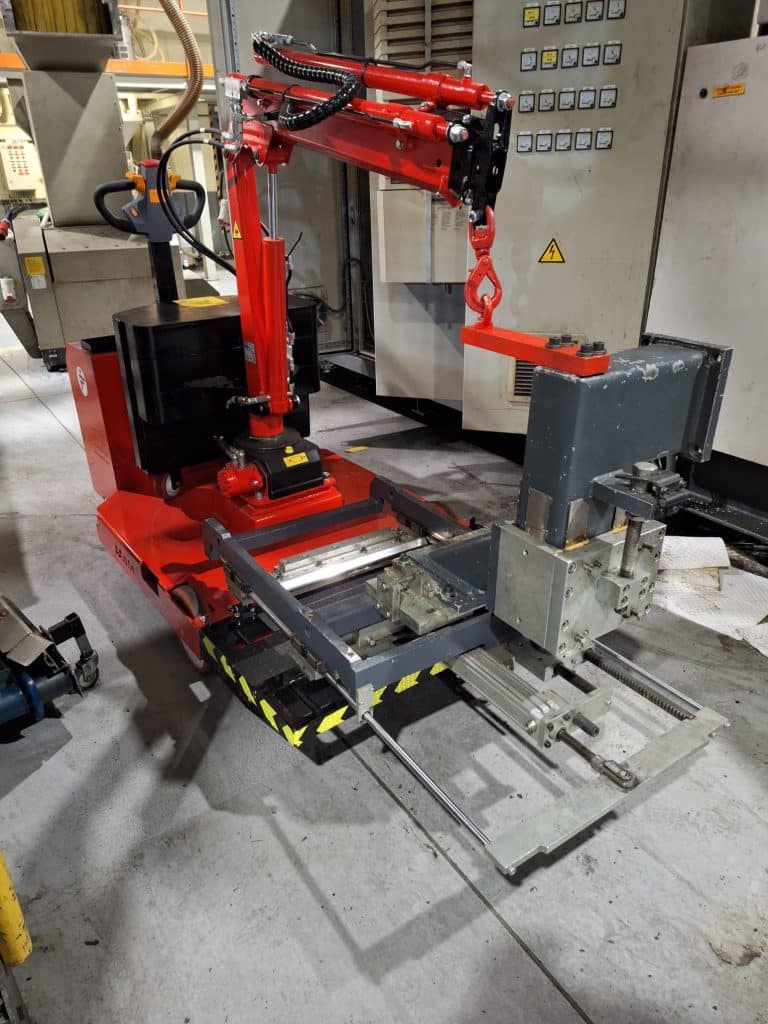

It can be equipped with any type of under hook accessory (vacuum lifter, bars, beans, clamps, tilters, permanent magnets and customised solutions) for unlimited applications in a large variety of industries. ORBIT 500EL is equipped with proportional control levers with adjustable speed
