Specification:

  • Ergonomic and intuitive design
  • Modular design for maximum flexibility and longevity
  • Precision and high performance lifting
  • Versatile and easy access

Capacity
Max Load Capacity – 175 kg
Max Lift Speed – 78 mm/s

Dimensions
Min Weight – 62kg

Min Height – 1947 mm
Max Height – 3000 mm

Min Length – 959mm
Max Length – 1384mm

Min Width – 576mm
Max Width – 1300mm

Enquire About This Equipment

This field is for validation purposes and should be left unchanged.

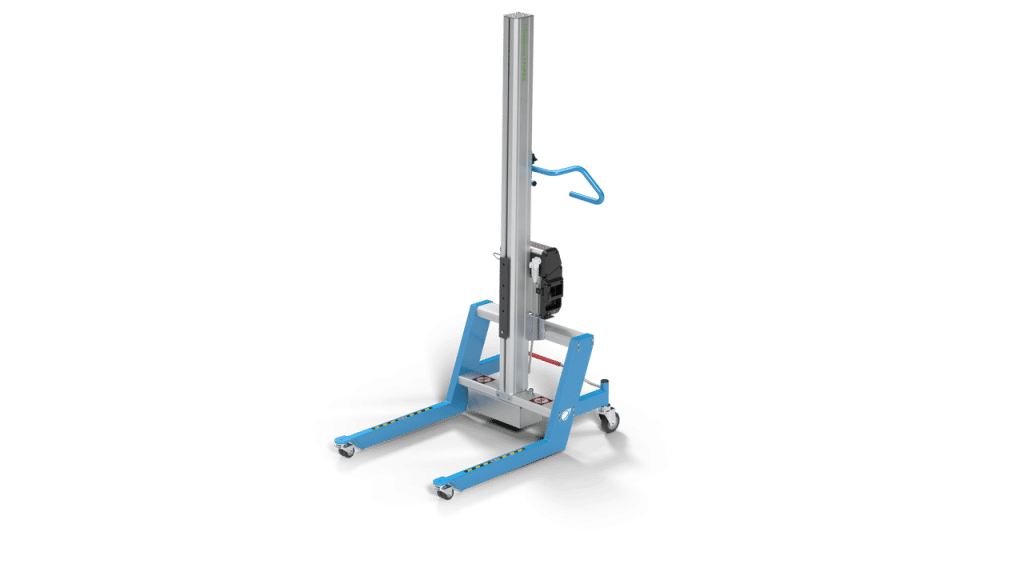

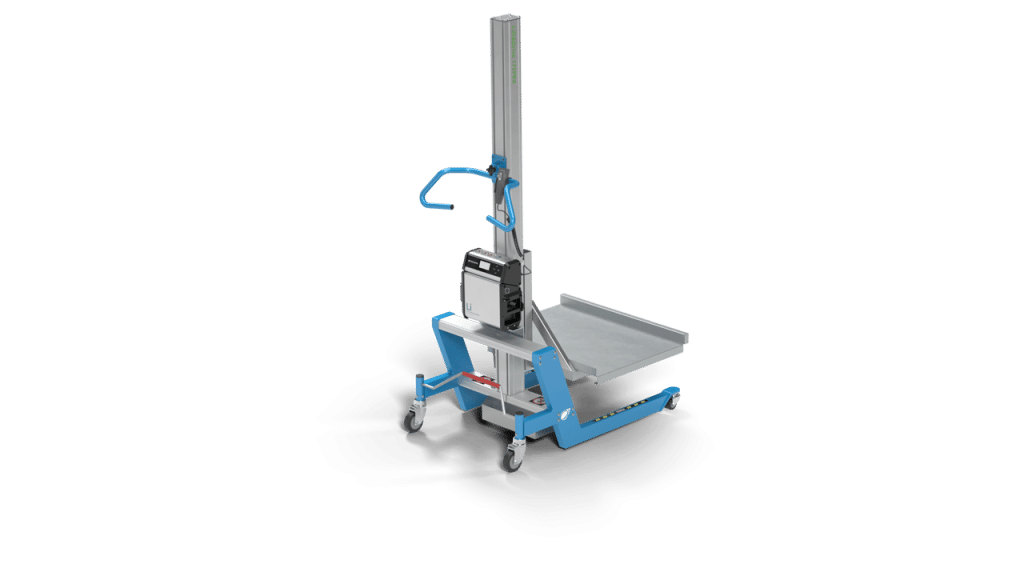

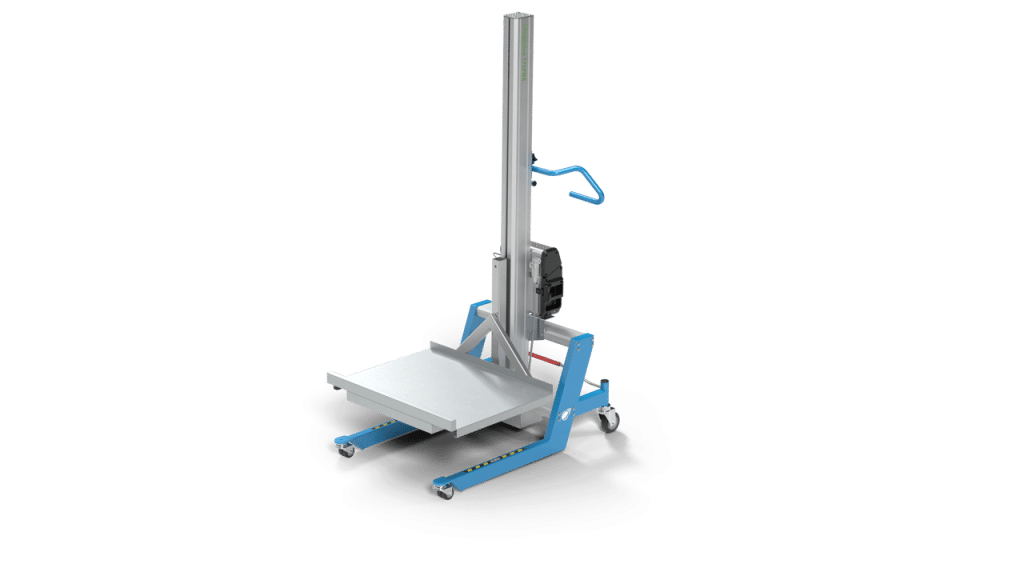

175PRX is exceptionally stable thanks to a sturdy but light build. It is particularly well suited for handling bulky loads at a distance from the mast. The trolley provides stability when lifting with any of our more advanced tools such as Telescopic mast for extended vertical reach, Expand&Turn for rolls and reel handling or Squeeze&Turn that apart from rolls even can handle buckets, drums and much more.

With the low roll resistance in combination with an optimal weight capacity ratio you can take on the heavier and bulkier loads as easy as that without the risk of strain. The rear wheels are equipped with an easy access central brake system that also includes directional lock.

The lifter Lift Safe supplied is excellent, both operators of the laying machine have said its works perfectly and saves a lot of heavy lifting sometimes with 2 people, as you will see from the photos the roll needs to be lifted to almost head height so previously it was a struggle, however with your lifter the job is much easier and safer now.

Mike Greer. Manager. AMR Textiles
