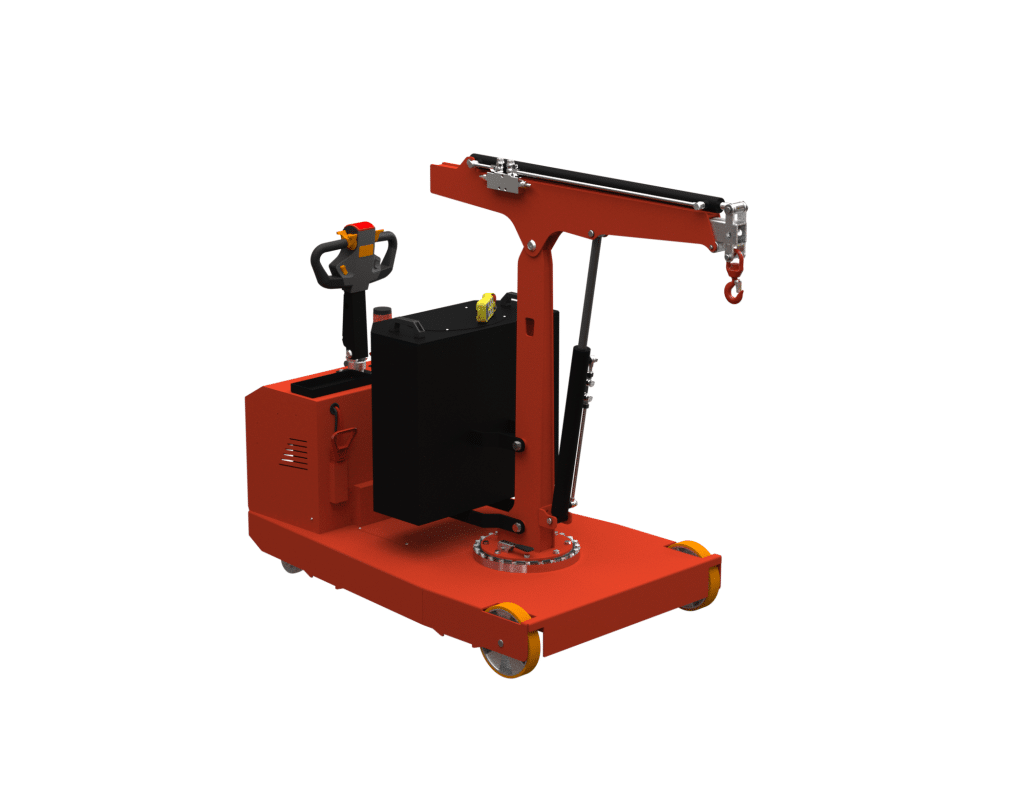

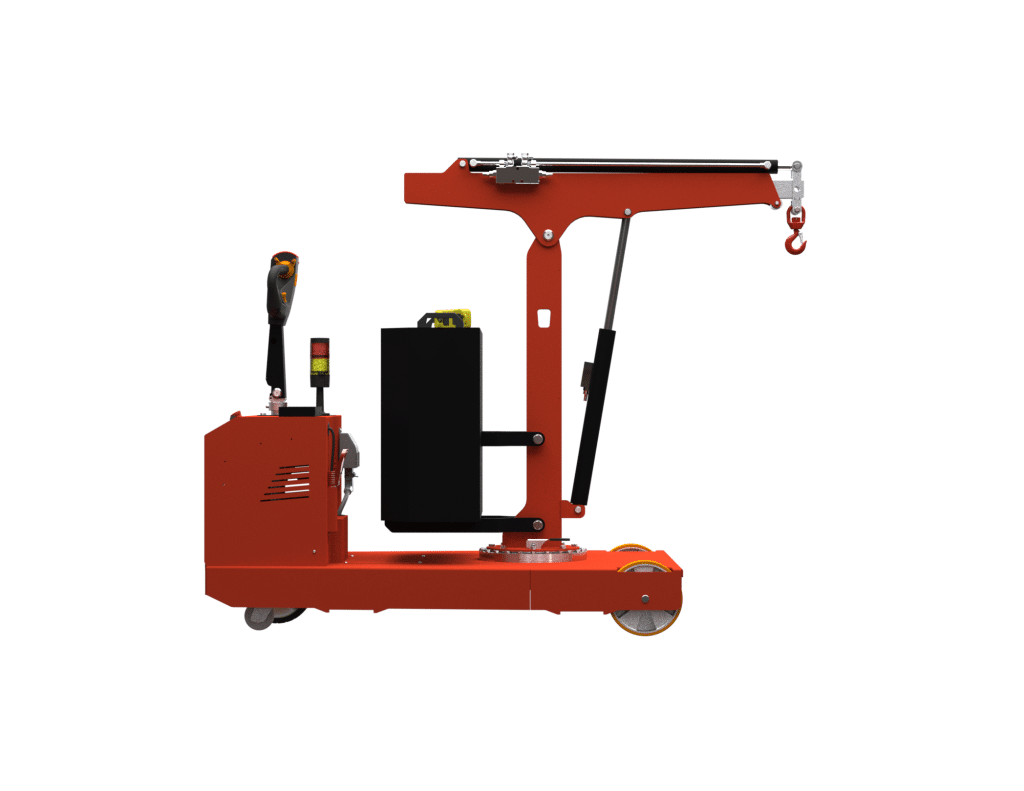

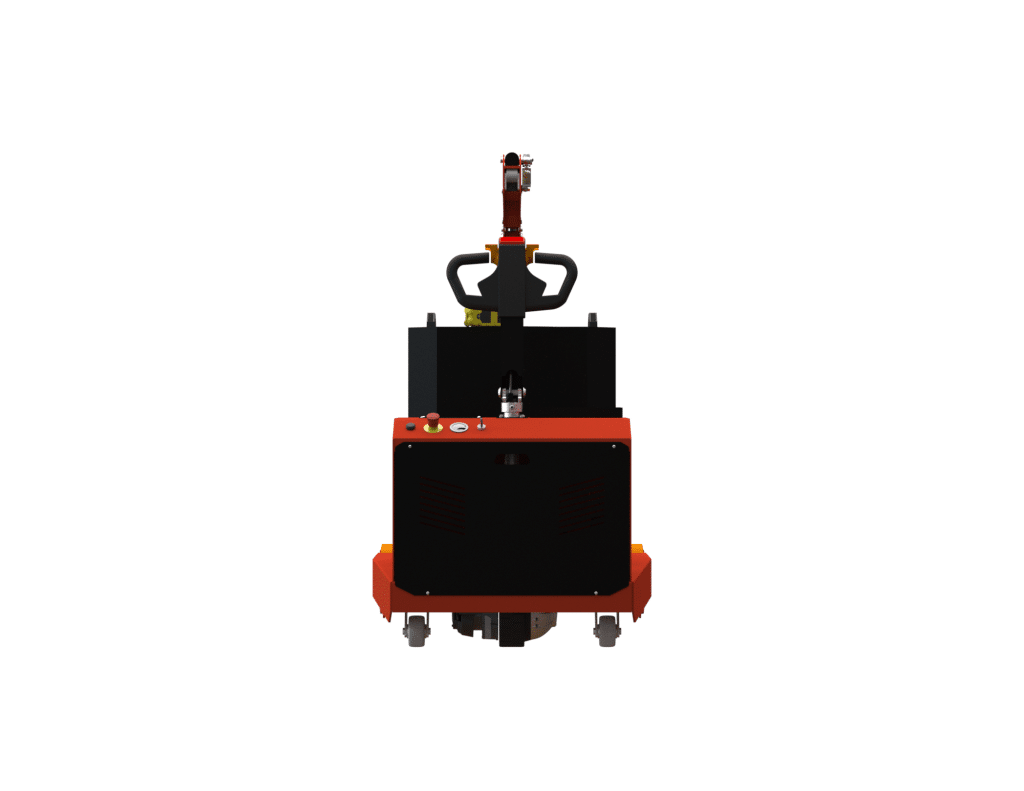

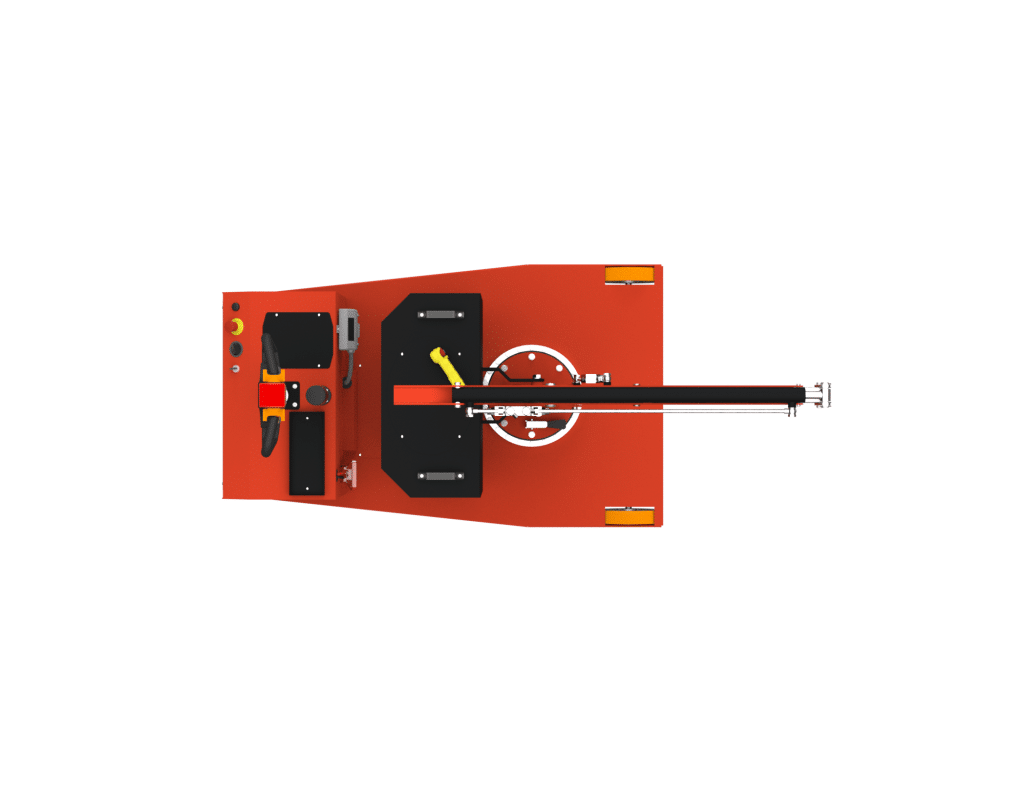

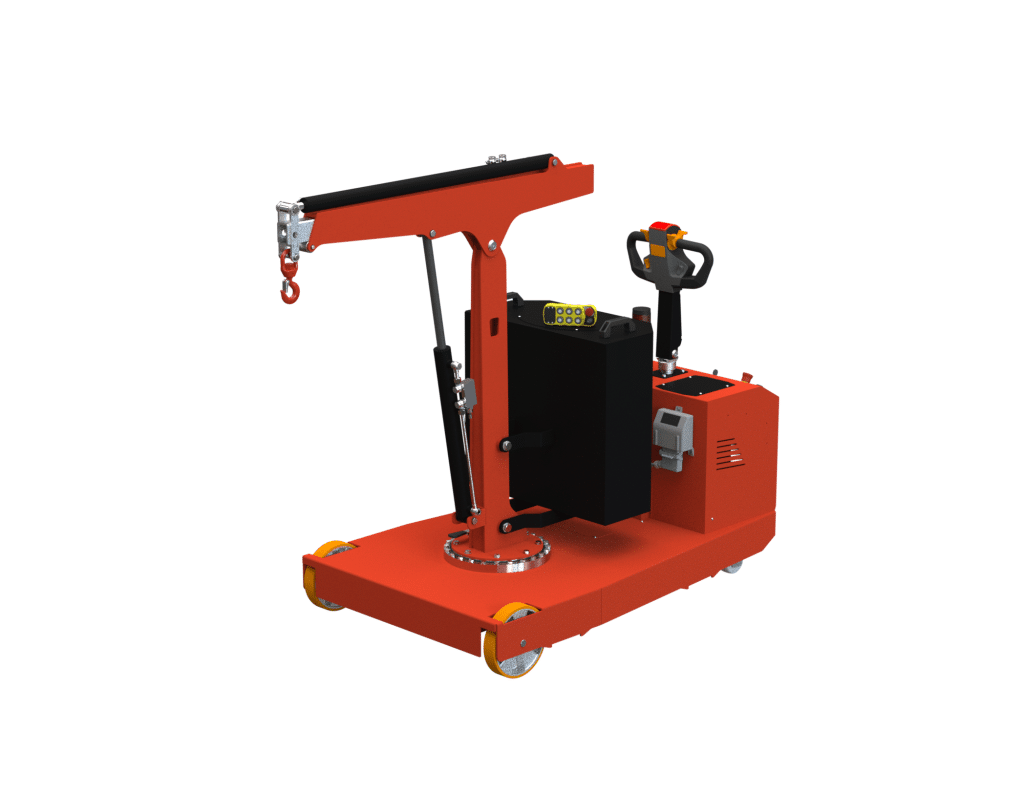

The electric counterbalanced crane FLEX G500SBR is a power driven counterbalanced swivel crane. Capacity 500Kg.
- It is equipped with an easy-sliding drive wheel and a pair of airtight AGM batteries.
- Electric lifting and lowering, extension and retraction at adjustable and proportional speed.
- The electric counterbalanced crane is extremely versatile, agile and easily maneuverable even in confined spaces.
The counterbalanced mobile mini crane FLEX G500SBR is a universal lifting solution with unlimited use possibilities. Thanks to its 270 degrees free rotating Jib arm , this lifting equipment is ideal for placements of moulds and various loads over obstruction/barrier,on 3D machines, lathes,narrow openings, assembly lines and over perimeter protections.

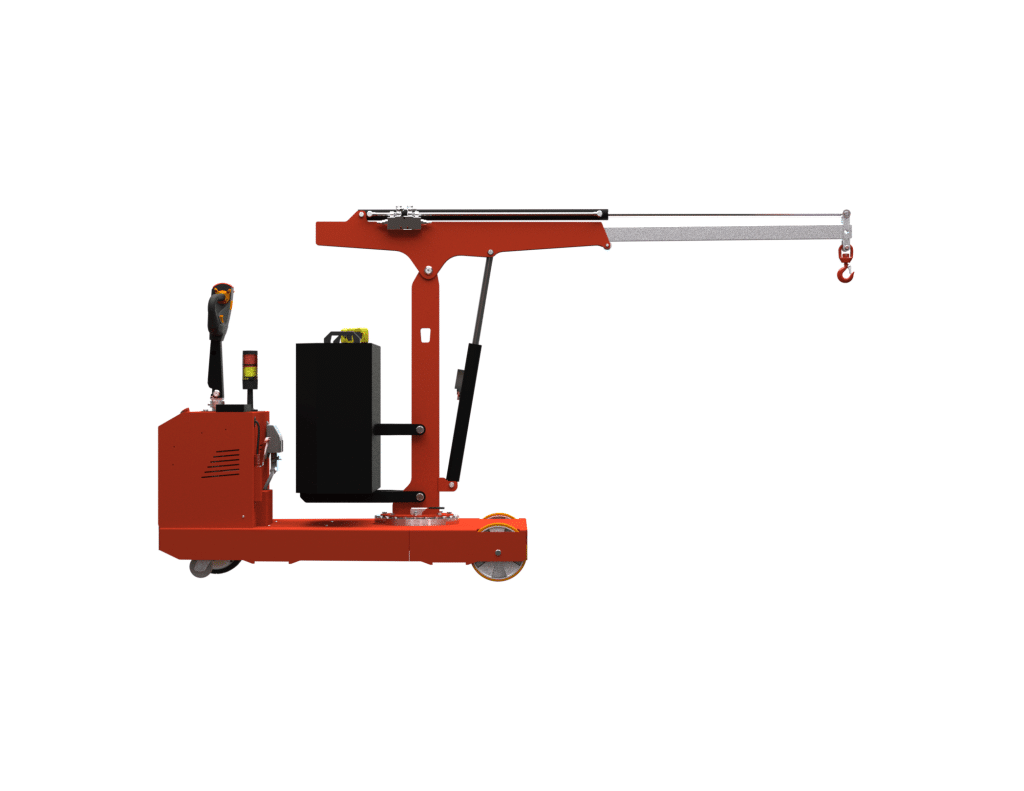

FLEX G500SBR is equipped with remote control for: arm lifting – arm lowering – boom extension – boom retraction. All movements can be operated with adjustable and proportional speed. The remote control handle is equipped with a button , that allows you to activate the proportional control mode.
TILLER ARM Maximum ergonomics : the operator can firmly grip the tiller handles with both hands Safe driving : Tiller arm safety switch disables operation in non-allowed positions Slow/fast speed : 2-speed driving Slow mode of 1.5 km/hr ideal for tight spaces and to safely move the load Standard speed of 3.0 km/hr to drive the crane along long distances Audible motion warning device : Horn with anti-noise polyester axial capacitor Anti-crush belly button: anti-crush button with automatic reversing switch to ensure the safety of the operator in every manoeuvring operation 2 butterfly controls: for forward travel and backward travel controls CONTROLS, WARNING LIGHTS AND STANDARD FEATURES 2 position key switch ; emergency button ; Green indicator light showing maximum load position and the upward/downward motion and extension & retraction motion are active; Red control light showing maximum load capacity (when the red light is activated is not possible to lift the load and extend the jib ); Indicator showing the battery charge level; Schuko socket for 220V charge ; Visual warning LED beacon; 24V intermittent buzzer when the crane is moving to increase operator safety; Storage compartment. POWER DRIVE AC traction motor with recovery braking. Permanent magnet drive wheel in direct current 24V 700W; high frequency MOSFET controller.
