• Powered lift/lower jib arm
  • Manual push/pull
  • Lift/Lower powered by 12v 110 Ah, powering electro hydraulic

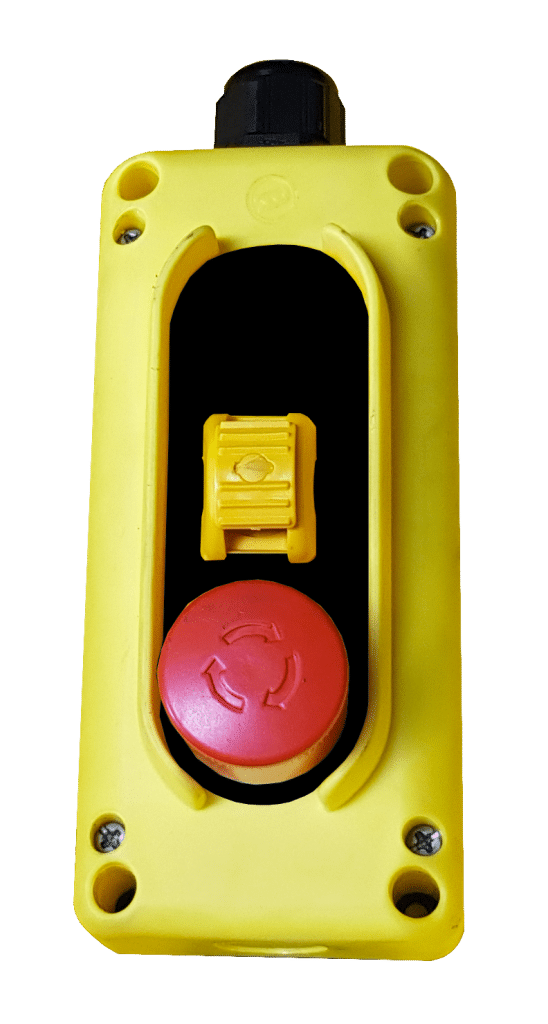

  • Lift/lower controlled by pendant progressive lever with emergency stop
  • Fixed jib arm
  • Max SWL 1000kg

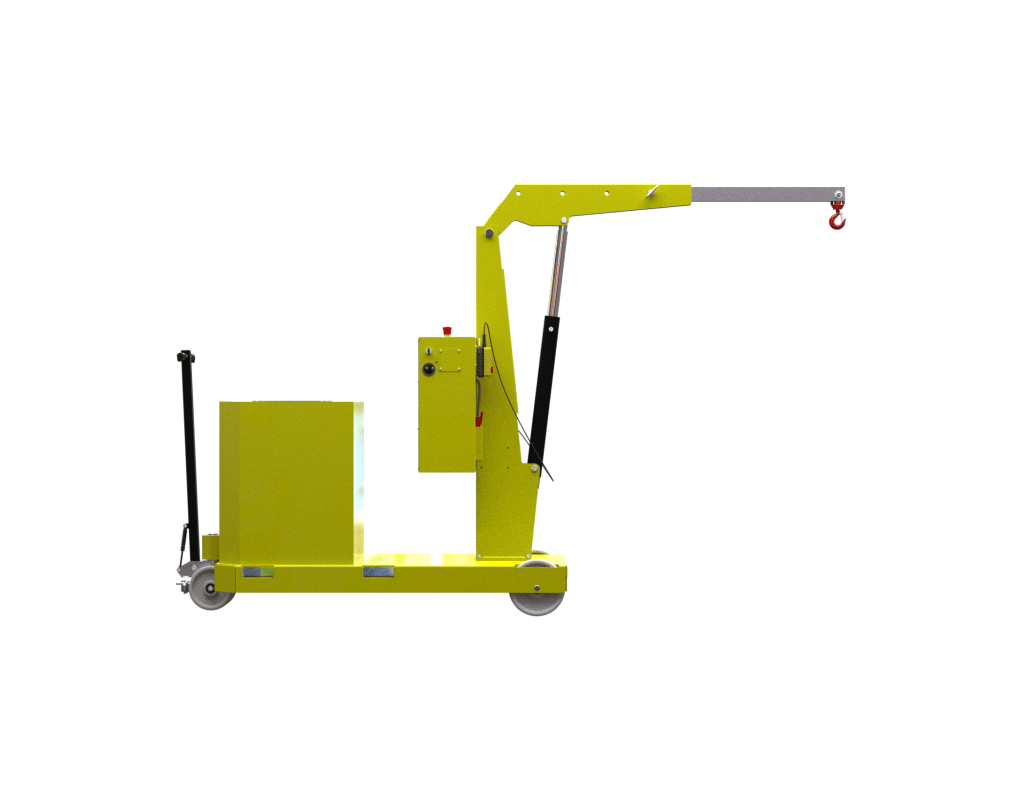

  • Jib extension manual
  • Maximum standard extension 1250mm
  • Maximum with optional extended jib arm 2000mm
  • Max lift height 3119mm
  • O/A dimensions with jib arm down L2100 x W955 x H1780mm
  • Machine weight 1190kg
  • Fixed front wheels
  • Rear rotating castors with brake
  • CE marked (Complete with SWL test certificate)
  • EN standards compliant

Enquire About This Equipment

This field is for validation purposes and should be left unchanged.

Our hydraulic counterbalanced crane equipment stands as a testament to cutting-edge engineering, seamlessly integrating a powered lift/lower jib arm with a suite of advanced features. With a manual push/pull mechanism, it offers precise load control. The lift/lower function, powered by a 12v 110 Ah battery and driving the electro-hydraulic system, ensures smooth and controlled lifting actions. The process is managed through a pendant progressive lever, equipped with an emergency stop feature that prioritizes safety without compromising efficiency.

The equipment’s fixed jib arm, coupled with its impressive maximum safe working load (SWL) of 1000kg, establishes it as a reliable choice for heavy-duty lifting operations. Its manual jib extension feature augments its adaptability, featuring a standard extension of 1250mm and the option for an extended jib arm, reaching up to 2000mm. Achieving a maximum lift height of 3119mm, the equipment effortlessly accesses elevated areas.

When the jib arm is lowered, the equipment’s overall dimensions measure L2100 x W955 x H1780mm. The substantial machine weight of 1190kg ensures stability during operation. The addition of fixed front wheels enhances control, while rear rotating castors, complete with a reliable brake system, ensure precise mobility even in challenging environments. The equipment proudly bears the CE mark, accompanied by a comprehensive safe working load (SWL) test certificate, reaffirming its commitment to adhering to safety standards. Fully aligned with EN standards, this equipment confidently positions itself as a dependable and adaptable tool, primed to excel across diverse industries, delivering efficiency and precision in every application.
